1.91 OLED Application: Meizu Pro 7 Plus Secondary Display

The Meizu Pro 7 Plus is a 5.7 inch smartphone that has two AMOLED displays, a 1440p display around the front, and a secondary 1.91 inch AMOLED(Active Matrix OLED) display on the back.

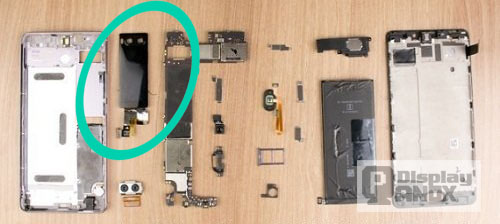

1.91_amoled_240x536

That secondary display allows you to quickly glance at the time, weather and
notifications and even provides access to the rear-facing camera for full-resolution selfies.

The Meizu Pro 7 Plus’ secondary display is unmistakably its standout feature. It may even be the sole reason that you’re checking out this review. Its uniqueness makes it a very enticing feature.

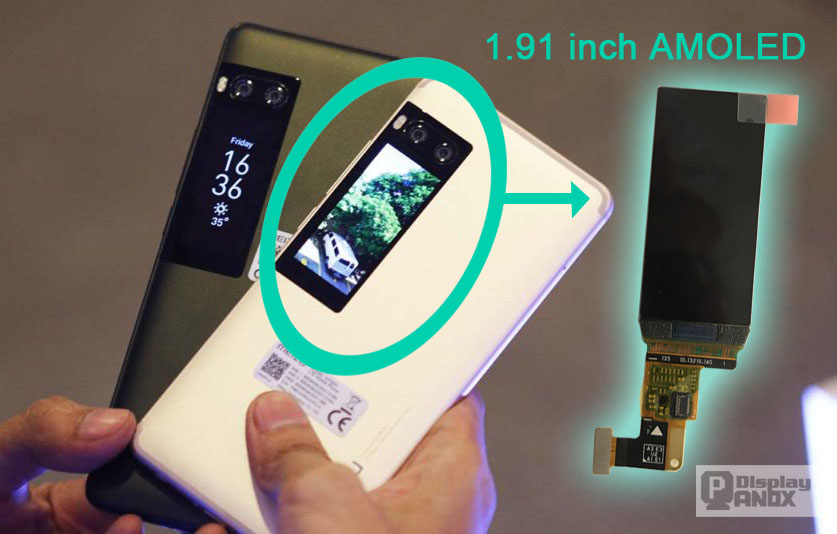

1.91_amoled_application

The secondary display is positioned on the top left area on the back of the Pro 7 Plus. The display itself covers a good portion of the glass below the camera configuration. In case you’re wondering, it’s a 1.91 inch 240×536 AMOLED panel. That’s a high enough resolution for what the display is.

The following is specifications of 1.91 inch AMOLED

Model: ED191AM8M
Display color: 16.7 M (RGB x 8 bits)
Display format: 1.91" (240xRGBx536)
Pixel arrangement: Real RGB arrangement
Interface: MIPI (1 lane)
LTPS Glass outline: 22.40 x 51.32 mm
Active Area: 19.80 x 44.22 mm
Glass thickness (LTPS/Encap.glass): 0.3/0.2 mm
Weight: 2.16 g

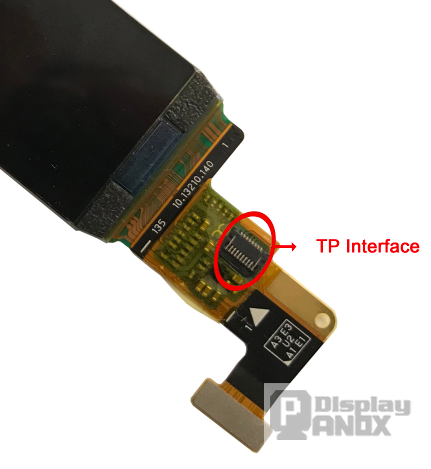

In addition to allow manufacturer add TP(Touch Panel), this 1.91" AMOLED has a TP socket on FPC, but added TP must match appointed pin assignment.

1.91_amoled_tp

For more information, please go to 1.91 inch AMOLED product page.
