15.6 inch Full Color OLED Display 4K Touch Panel 15.6 inch Full Color OLED Display 4K Touch Panel

15.6 inch Full Color OLED Display 4K Touch Panel

For a few displays with controllor board, it's better to buy from our online store. For development and batch order, or technical specification including datasheet, circuit schematics, initial code, customized cover glass, touch panel, please kindly contact us

Shop on Online Store


Model:  ATN56WR01

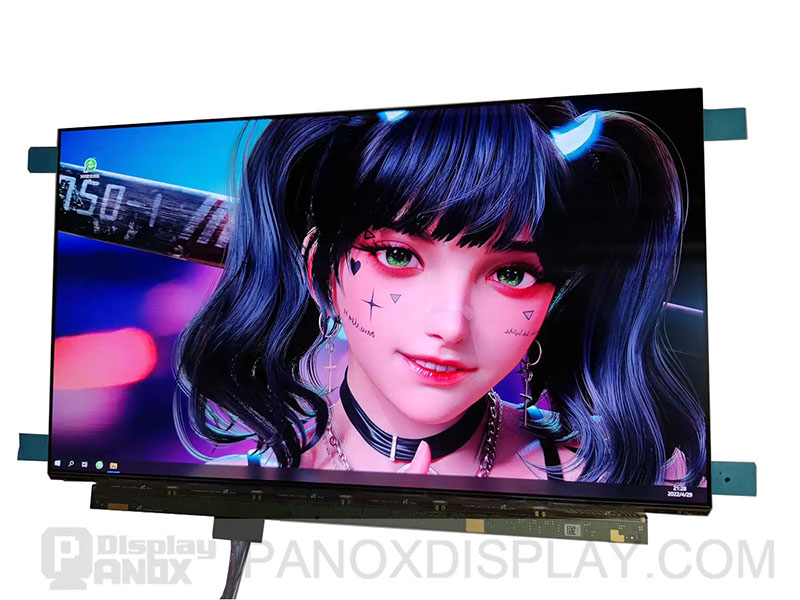

ATN56WR01 is a 3840x2160 pixel laptop used AM-OLED display from Samsung Display with eDP 4 lanes interface. It features an operating temperature range of -30~70°C, 60 Hz frequency, 400 cd/m brightness, 16:9 aspect ratio, consumption is as low as 13.27/14.85W.

Its input current is 566±57mA, input voltage is 3.3 V. This 15.6 inch OLED display is very thin, only 2.2 mm. The contrast ratio can reach 100k:1. BTW, this Samsung OLED is very suitable for gaming, because its response speed is only 1 ms.



Panox Display provide a full lamination CTP (capacity touch panel) and eDP to HDMI Controller board,




In brief, this OLED display have advantages as follows,

1. Wide Operating Temperature: Work well under -40℃
2. Super response time: 1 ms
3. Readable under the sun
4. High PPI: 282 PPI
5. Thin like paper: 2.2mm
6. High Contrast: 100000:1
7. Vivid Image:1.06 Billion
8. Low Consumption:13.27/14.85W.



Vivid Color
156oled_sdc_panox

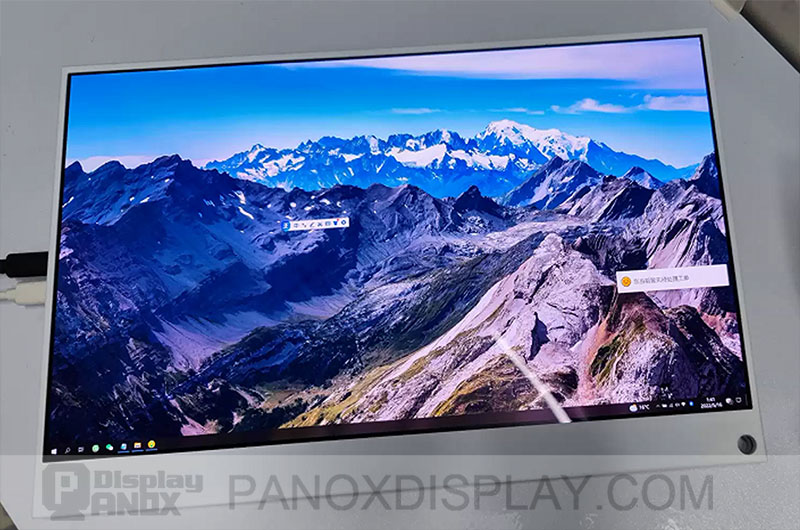

Panox Display also provide a shell for this 15.6 OLED

15.6oled_shell



Datasheet Download

File Name Description Language Tags Update Time Document Size Download
ATNA56WR01.pdf Datasheet English 15.6 oled 2022-05-24 04:01:31 437.36KB


Panox Display values every opportunity to cooperate with clients, because OLED display is fragile, so we provide a solid package and the fastest way to ship. Panox Display has seven years experience of in international trade and served more than 1000 clients all over World.
It`s safe and convenient to work with Panox Display.

logistics

To make your development of the OLED display driver more smooth, Panox Display will provide free connectors and an adapter board, engineers can directly fly lines to the main board.
If you need a customized board with HDMI/Type-C input, Panox Display also can meet your requirements.

display_connectors

Panox Display has built an automatic production line that can produce more than 50K displays per day. Its free dust factory can automatically bond IC, FPC, and backlight. Panox Display always keeps a skillful QC team to make sure every shipped display is without any quality problems.
Panox Display also provides customized LCD/OLED with a low-cost solution.

lcd_produce

Panox Display focuses on small and medium-size displays, from 0.39 inch to 15.6 inch, including all kinds of shapes, such as
rectangular displays, square displays, round/circular displays, and Long-strip displays.

display_industries

Over the past 7 years, Panox Display has served clients all over the world, most of our clients are from developed countries, such as North America, Europe, East Asia, and Australia. With patient service, Panox Display has built good relationships with many clients including DIYers, engineers, purchasers, electronics traders, and company founders. Panox Display has reliable express shipped to any place in the world.

Our clients are from varieties of industries, from civil products to military level, including Vehicles, E-entertainment, Smartwatch, 3D printers, Turn-key solutions, Diving, and Medical.
With the development of technology, more and more products will need display panels. Panox Display also keeps following the latest display technology.

application_lcd


What do you wait for? Just start to develop with Panox Display`s panels.


FAQ


Where can I buy this display?

If you just need a few samples, it`s better to directly on our Aliexpress store, we are 5 stars feedback supplier with 100% Honesty. (The buy link is on the right of the product image)
For bulk orders, it`s better to contact us and get a better price.

I don`t know which display is suitable for my project.

Different displays have different characteristics, just tell Panox Display your application, and operating environment, Panox Display will suggest a suitable display for you.

How can I test the display screen?

Panox Display provide HDMI/Type-C controller board or individual demo kit to test.
The pictures of demo kit can be changed by yourself.

How can I drive the display panel?

Panox Display will provide necessary specifications for most LCD/OLED on sale, including,
Display Datasheet
Display Drawing
IC Datasheet
Circuit schematic
For most electronics engineers, our specifications are enough to run the display, and we will provide some assistance.
But Panox Display is not a school, if customers don`t know the basic knowledge to design circuit boards, we suggest using our controller board to drive the display.
display_fae

Where can I get the cover glass or touch screen for this display panel?

First, you need to check whether this display has On-cell or In-cell touch panel, if has, it only needs to add a cover glass on it. If not, it needs an external touch panel.
(On-cell and In-cell are integrated PCAP touch panels on the display screen)
Because the shape of the cover glass depends on the design of the clients, to avoid infringement of appearance,  most of the developers need different customized touch panels.
Panox Display can provide a customized touch screen with a low cost of tooling charge.
touch_screen


How do Panox Display ship display panels?

1. UPS/Fedex/DHL/TNT, the best choice for most clients, 3~7 days to arrive.
2. Aliexpress standard ship, this way is cheap and slow, usually take more than 10 days. Only for samples.
3. For Russian clients, EMS or Aliexpress shipment is better.
4. Any designated logistics are acceptable

What`s the quality standard of Panox Display`s display panels?

Most display panels are from giant manufacturers such as BOE, Sharp, LG, EDO, AUO, etc. They have already tested with strict standards.
For OEM products from Panox Display factory, please check the quality test standards.

What`s the lifetime of these display panels?

The lifetime is different on different images, check the lifetime on datasheet to study it.

Can I connect this display to Raspberry Pi?

If your Raspberry Pi can support the interface of the display panel, and you know how to program on Raspberry Pi, you can connect to our display.
If you don`t know or don`t want to write a display program on Raspberry Pi, it`s better to get an HDMI controller board from us, and Panox Display will send a config.txt file for reference.


Model Name ATN56WR01
Display Type AMOLED
Display Brand Samsung
Interface LVDS
Screen Size 15.6
Orientation Landscape
Display Color Full Color
Manufacturer Samsung
Resolution 3840×2160
Driver IC -
Consumption 13.27/14.85W
Active Area (mm) 344.218(W)×193.622(H) mm
Bezel Area (mm) -
Luminance 400 cd/m² (Typ.)
Viewing Angle 85/85/85/85 (Typ.)(CR≥10)
Color Depth 1.06B 100% DCI-P3
Mass 200 g (Typ.)
Refresh Rate 60Hz
Signal Type eDP (4 Lanes)
Voltage Supply 3.3V (Typ.)
Operating Temp -30 ~ 70 °C
Storage Temp -30 ~ 80 °C
Aspect Ratio 16:9 (H:V)
Screen Type OLED , AM-OLED
Arrangement RGB Vertical Stripe
Outline (mm) 348.218(W)×215.572(H) ×2.2(D) mm
Treatment -
Contrast Ratio 100000:1 (Typ.) (TM)
Response 1 (Typ.)(Tr+Tf) ms
Work Mode -
Backlight self
Used For Laptop
Touch Panel Customized
Outdoor Visibility Readable Under Sun
