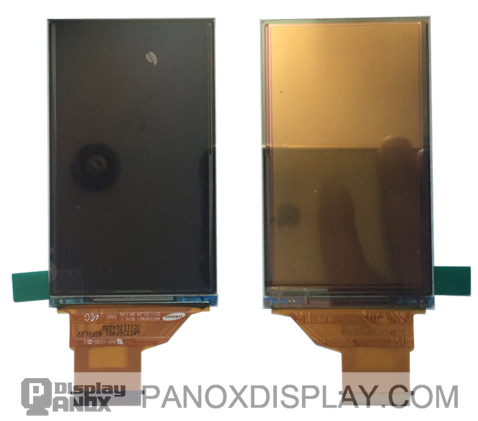

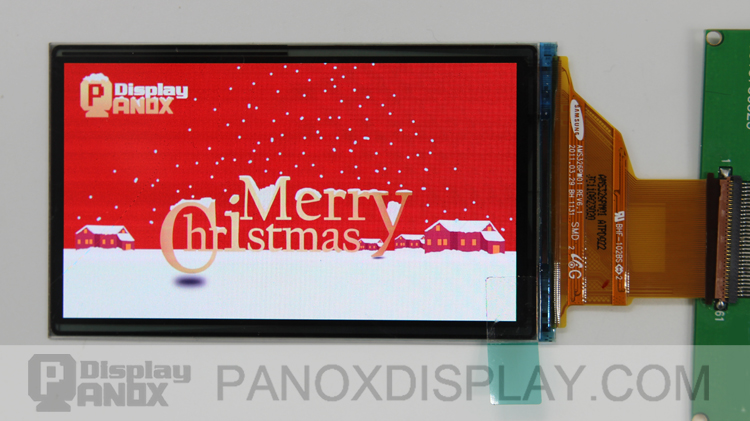

3.26 inch  OLED For Handheld 3.26 inch  OLED For Handheld

3.26 inch OLED For Handheld

For a few displays with controllor board, it's better to buy from our online store. For development and batch order, or technical specification including datasheet, circuit schematics, initial code, customized cover glass, touch panel, please kindly contact us

Shop on Online Store


Model: AMS326PM01

Panox Display`s 3.26 inch OLED is a 854x480 pixel hand held used AM-OLED display with D53E6EA8805 (Magnachip) driver ic communicates via RGB 24 bits, SPI-4/3 line interface, outstanding display quality, vivid color, super wide view angle and easily controlled by MCU such as STM469, STM479, STM768, RAM7+, Raspberry Pi, Linux, Android. FPC with 61 pins connector is easy to assemble or remove. It features a storage temperature range of -30 ~ 80°C, which enable client to use in a harsh enviroment.

It can be used in any hand held, vehicle, Smart Home, GPS, industrial device, security, dynamic information displays, and electronic album which requires a display in high quality and colorful image. It supports the MIPI interface. FPC with Hirose connector is easy to assemble or remove.

OLED display have advantages as follows,
Thin Like Paper: More than 50% thinner and lighter than LCD, creating an edgy form factor in style
Low  Power Consumption: Clock-mode standby can be up to 60 hours
True Color: High contrast ratio and wide color gamut offer sharp and vivid image, and consistent display from any angle.
Readable In Sun
Wide View Angle
Wide Temperature Operation
Pure Black Color

Panox Display provide a SSD2828 test kit to drive this 3.26 inch AM-OLED





Datasheet Download

File Name Description Language Tags Update Time Document Size Download
AMS326PM01_1-10.pdf Datasheet English 3.26 OLED 2022-05-23 01:58:03 1.78M


Model Name AMS326PM01
Display Type AMOLED
Display Brand Samsung
Interface SPI,RGB
Screen Size 3.26
Orientation Landscape
Display Color Full Color
Manufacturer Samsung
Resolution 854(RG/BG)×480 , FWVGA
Driver IC Built-in D53E6EA8805
Consumption -
Active Area (mm) 72.16(W)×40.56(H) mm
Bezel Area (mm) -
Luminance 300 cd/m² (Typ.)
Viewing Angle 80/80/80/80 (Typ.)(CR≥200)
Color Depth 16.7M 106% (CIE1931)
Mass -
Refresh Rate 60Hz
Signal Type Parallel RGB (1 ch, 8-bit) + SPI , 61 pins , FPC
Voltage Supply 1.8/3.0/3.0V (Typ.)(VCCIO1/VCCIO2/VCI)
Operating Temp -20 ~ 70 °C
Storage Temp -30 ~ 80 °C
Aspect Ratio 16:9 (H:V)
Screen Type AM-OLED, OLED
Arrangement RG/BG PenTile
Outline (mm) 80.56(H)×47.36(V) ×0.86(D) mm
Treatment Glare (Haze 0%), Hard coating
Contrast Ratio 10000:1 (Typ.) (TM)
Response 1 (Max.)(Tr+Td)
Work Mode -
Backlight self , 30K hours
Used For Digital Camera
Touch Panel Customized
Outdoor Visibility Sunlight readable
