5.0 inch OLED On-cell PACP TP For Cellphone 5.0 inch OLED On-cell PACP TP For Cellphone

5.0 inch OLED On-cell PACP TP For Cellphone

For a few displays with controllor board, it's better to buy from our online store. For development and batch order, or technical specification including datasheet, circuit schematics, initial code, customized cover glass, touch panel, please kindly contact us

Shop on Online Store


Model: H497TLB01/H497TLB02S

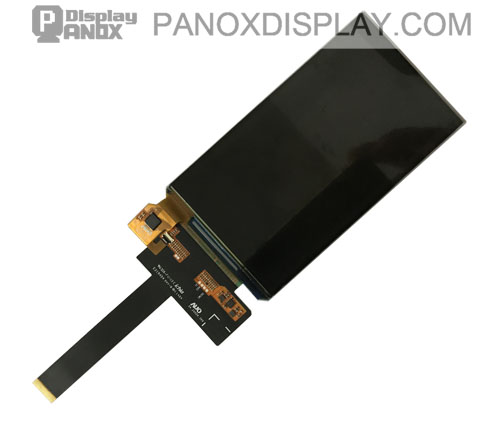

H497TLB01 is a 5.0 inch diagonal AM-OLED display screen with RM69052 driver IC communicates via MIPI interface, outstanding display quality, vivid color, super wide view angle and easily controlled by MCU such as SSD2828, STM469, STM479, STM769, RAM 7+, Raspberry Pi, Linux, Android. FPC with ZIF connector FF20-39A-R11A-B-3H is easy to assembly or remove.
It can be used in any Mobile Phone, Handhelp Equipment, Vehicle, Smart Home, GPS, Industrial device and military equipment which requires in high and colorful image, low consumption, readable undersun.

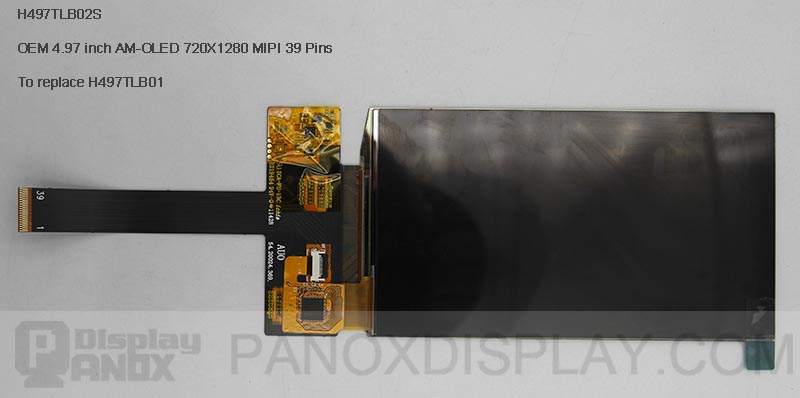

The AUO original 5.0 inch OLED is EOL, and Panox Display has made an OEM 4.97 OLED which is almost same as original one

H497TLB02S
H497TLB02S

OLED display have advantages as follows,
Thin Like Paper: More than 50% thinner and lighter than LCD, creating an edgy form factor in style
Low  Power Consumption: Clock-mode standby can be up to 60 hours
True Color: High contrast ratio and wide color gamut offer sharp and vivid image, and consistent display from any angle.
Readable In Sun
Wide View Angle
Wide Temperature Operation: Work well at low temperature -40℃
Pure Black Color

Panox Display provide SSD2828 FPGA test kit to drive this 4.97 inch OLED,

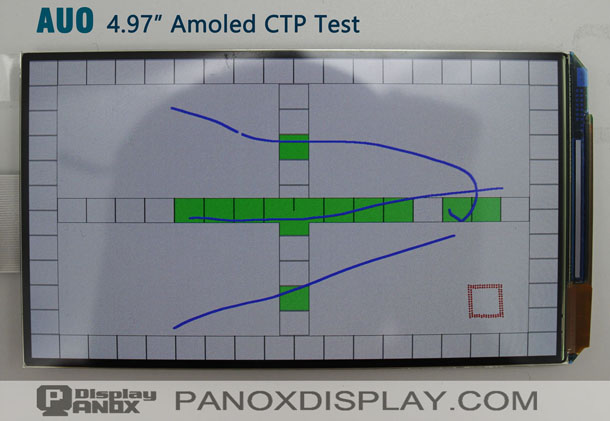

This 5.0 OLED is Combined  On-Cell CTP



Datasheet Download

File Name Description Language Tags Update Time Document Size Download
H497TLB01.pdf Datasheet English 5.0 oled 2022-05-23 05:51:55 255.13KB


Model Name H497TLB01
Display Type AMOLED
Display Brand AUO
Interface MIPI
Screen Size 5.0
Orientation Portrait
Display Color Full Color
Manufacturer AUO
Resolution 720(RGB)×1280
Driver IC RM69052
Consumption -
Active Area (mm) 61.92(H)×110.08(V) mm
Bezel Area (mm) -
Luminance 250 cd/m² (Typ.)
Viewing Angle 80/80/80/80 (Min.)(CR≥200)
Color Depth 16.7M 100% (CIE1931)
Mass -
Refresh Rate 60Hz
Signal Type MIPI DSI,39 pin
Voltage Supply
Operating Temp -30 ~ 60 °C
Storage Temp -40 ~ 70 °C
Aspect Ratio 9:16 (H:V)
Screen Type AM-OLED, OLED
Arrangement RGB Vertical Stripe
Outline (mm) 65.92 × 118.64 × 0.87 (H×V×D)
Treatment -
Contrast Ratio 10000 : 1 (Min.) (TM)
Response 1.0 (Max.) ms
Work Mode -
Backlight self
Used For Mobile Phone
Touch Panel PCAP, On-Cell
Outdoor Visibility Sunlight readable
