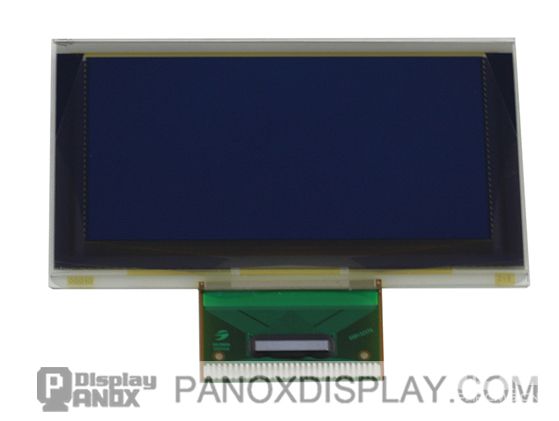

2.7 inch PMOLED For Instrument

2.7 inch PMOLED For Instrument

For a few displays with controllor board, it's better to buy from our online store. For development and batch order, or technical specification including datasheet, circuit schematics, initial code, customized cover glass, touch panel, please kindly contact us

Shop on Online Store


Small moecular organic light emitting diode

Datasheet Download

File Name Description Language Tags Update Time Document Size Download

Model Name PDO270Y12864W01
Display Type PMOLED
Display Brand Ritdisplay
Interface I2C,SPI,Parallal
Screen Size 2.7
Orientation Landscape
Display Color Monochrome
Manufacturer RiTdisplay
Resolution 128×64
Driver IC COG Built-in SPD0301
Consumption 420/450mW (Typ./Max.)
Active Area (mm) 61.41(W)×30.69(H) mm
Bezel Area (mm) 64.61(W)×37(H) ×2.12(D) mm
Luminance 120 cd/m² (Typ.)
Viewing Angle 80/80/80/80 (Min.)
Color Depth Mono(Yellow/Green/White)
Mass -
Refresh Rate 105Hz
Signal Type 8-bit 6800/8080 parallel, SPI, I²C , 22 pins , FPC
Voltage Supply -
Operating Temp -40 ~ 70 °C
Storage Temp -40 ~ 85 °C
Aspect Ratio 2:1 (H:V)
Screen Type PM-OLED, OLED
Arrangement -
Outline (mm) -
Treatment Antiglare
Contrast Ratio 2000 : 1 (Min.) (TM)
Response 0.01 (Typ.)
Work Mode -
Backlight self , 30K hours
Used For Industrial Application, Medical Equipment
Touch Panel Customized
Outdoor Visibility Sunlight readable
