8.9 inch TFT-LCD IPS For Tablet/3D Printing 8.9 inch TFT-LCD IPS For Tablet/3D Printing 8.9 inch TFT-LCD IPS For Tablet/3D Printing

8.9 inch TFT-LCD IPS For Tablet/3D Printing

For a few displays with controllor board, it's better to buy from our online store. For development and batch order, or technical specification including datasheet, circuit schematics, initial code, customized cover glass, touch panel, please kindly contact us

Shop on Online Store


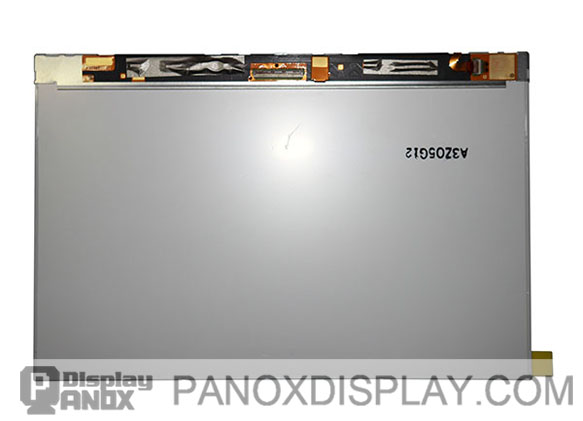

Model: TFTMD089030

TFTMD089030 is 2560x1600 resolution tablet used TFT-LCD display with Renesas R69429 driver IC communicates via MIPI DSI 4 lanes interface, high PPI, outstanding display quality, vivid color. TFTMD089030 is an IPS-LCD which has following advantages,
1. Quick Response
2. Large Visual Angle
3. More Real Colors
4. Excellent picture
5. No water lines when touch
6. Lower consumption
7. Accurate color

Recommend MCU: RK3399

It can be used in any ablet, Pad, Digital products, 3D printing system which requires display in high quality and colorful image. It supports MIPI 4 lanes interface, so it requires a good MCU to drive it. FPC with FH36W-61S-0.3SHW(50) connector is easily to assemble or remove. Panox Display will provide free FPC.

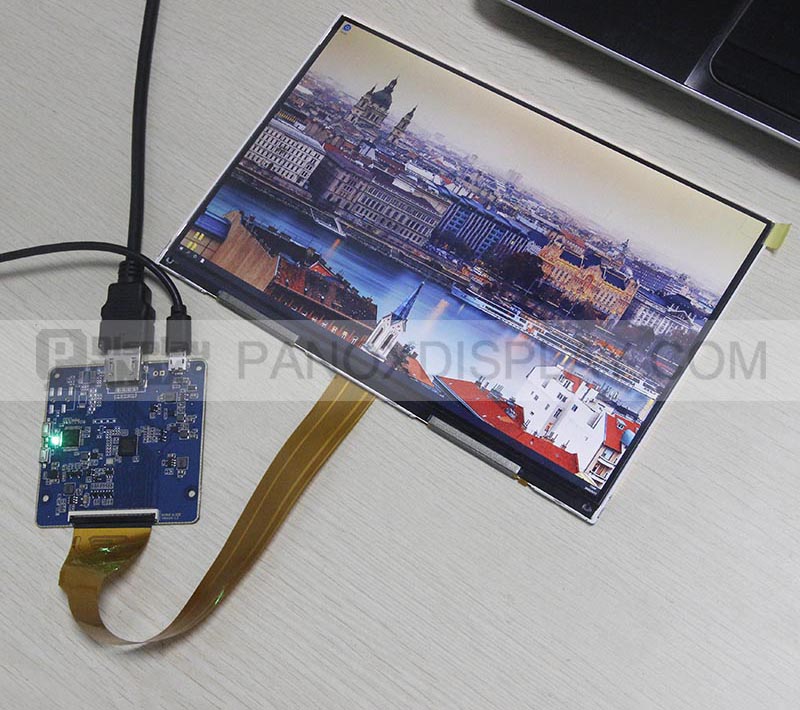

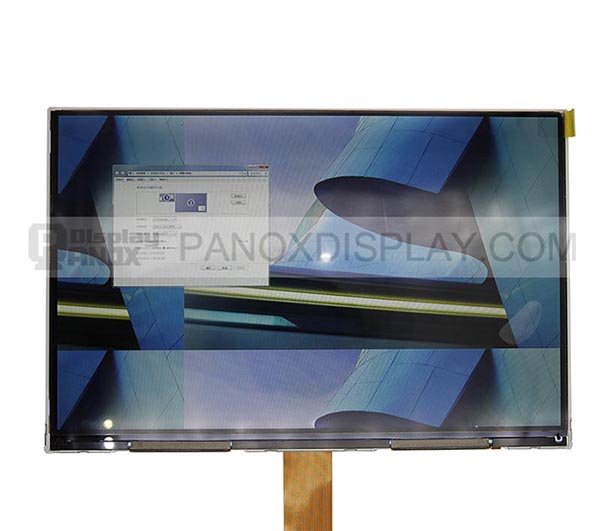

Panox Display provide HDMI to MIPI DSI controller board to drive it

tftmd089030

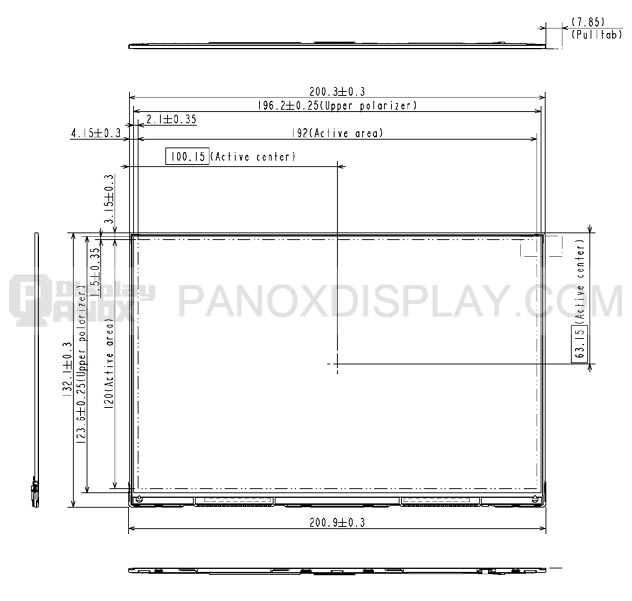

Mechanical Dimension Drawing

tftmd089030_size
Sufficient Inventory

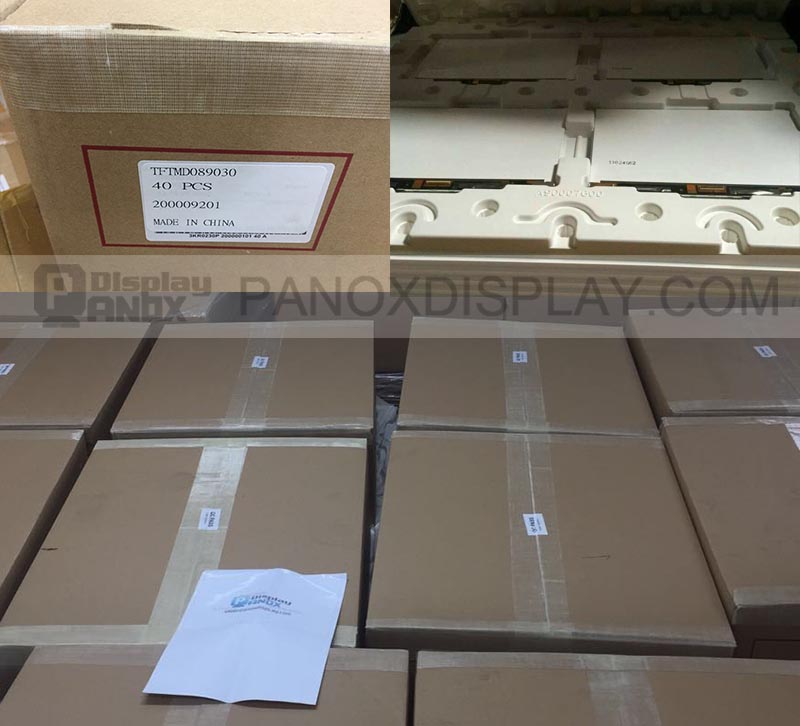

tftmd089_stock


Developed By Panox Display`s Client

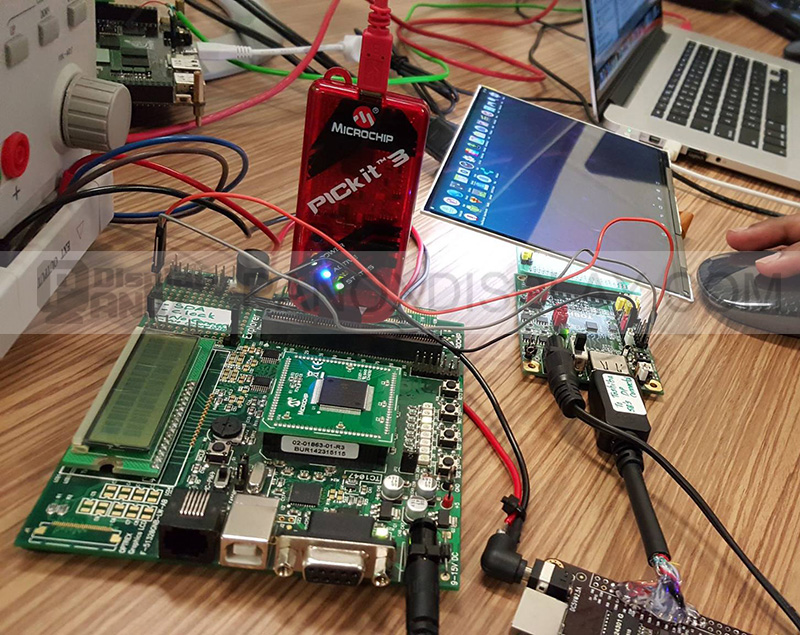

tftmd089_mcu



Datasheet Download

File Name Description Language Tags Update Time Document Size Download
TFTMD089030(JDI 8.9).pdf Datasheet English TFT-LCD 2022-05-19 23:10:04 1.38M


Model Name TFTMD089030
Display Type TFT-LCD
Display Brand JDI
Interface MIPI
Screen Size 8.9
Orientation Landscape
Display Color Full Color
Manufacturer JDI
Resolution 2560(RGB)×1600 , WQXGA
Driver IC Built-in R69429
Consumption 230/300mW (Typ./Max.)
Active Area (mm) 192(H)×120(V) mm
Bezel Area (mm) -
Luminance 500 cd/m² (Typ.)
Viewing Angle 80/80/80/80 (Typ.)(CR≥10)
Color Depth 16.7M 72% (CIE1931)
Mass -
Refresh Rate 60Hz
Signal Type 61 pins MIPI (2 ch, 4 data lanes) , Connector
Voltage Supply 1.8/3.3V (Typ.)(VDDIO/VBAT)
Operating Temp -20 ~ 60 °C
Storage Temp -20 ~ 65 °C
Aspect Ratio 16:10
Screen Type LTPS TFT-LCD,LCM
Arrangement RGB Vertical Stripe
Outline (mm) 200.3(H)×132.1(V) ×3.43(D) mm
Treatment -
Contrast Ratio 1200:1 (Typ.) (TM)
Response -
Work Mode IPS, Normally Black, Transmissive
Backlight WLED [6S6P] , W/O Driver
Used For Tablet, Pad
Touch Panel Customized
Outdoor Visibility -
