10.1 inch LCD 1920x1200 For Automobile console HDMI Board 10.1 inch LCD 1920x1200 For Automobile console HDMI Board

10.1 inch LCD 1920x1200 For Automobile console HDMI Board

For a few displays with controllor board, it's better to buy from our online store. For development and batch order, or technical specification including datasheet, circuit schematics, initial code, customized cover glass, touch panel, please kindly contact us

Shop on Online Store

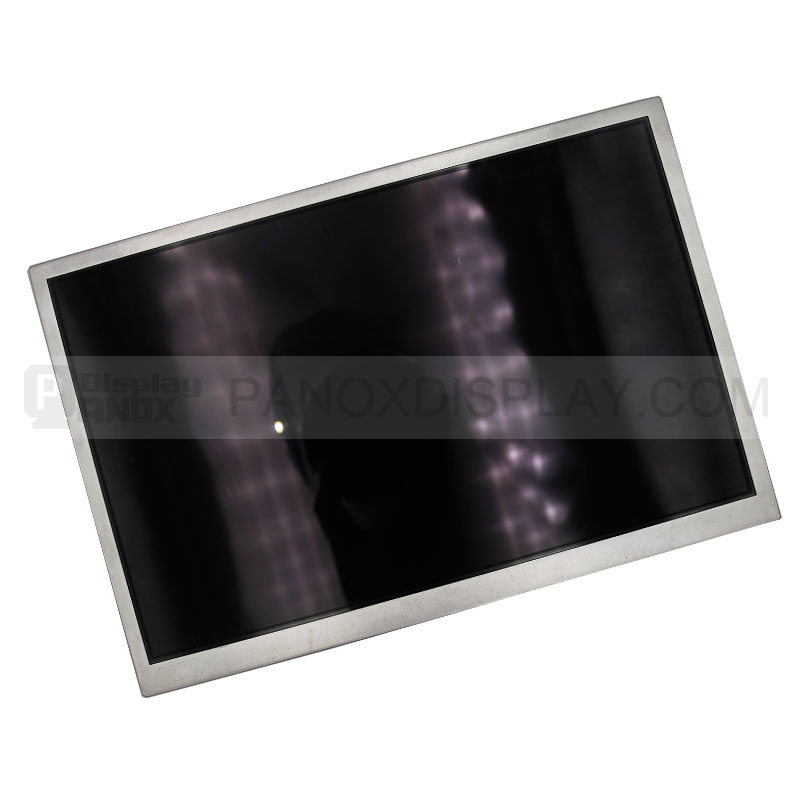

Panox Display`s PL101FCL01 is a 10.1-inch TFT-LCD with 1920x1200 pixels, integrated PCAP Touch Panel, and LVDS interface. This 10.1-inch TFT-LCD support a 1920x1200 resolution with an aspect ratio of 16:10. Its LVDS interface is easily controlled by MCU such as STM469, STM479, STM769, Raspberry Pi, Linux, and so on.

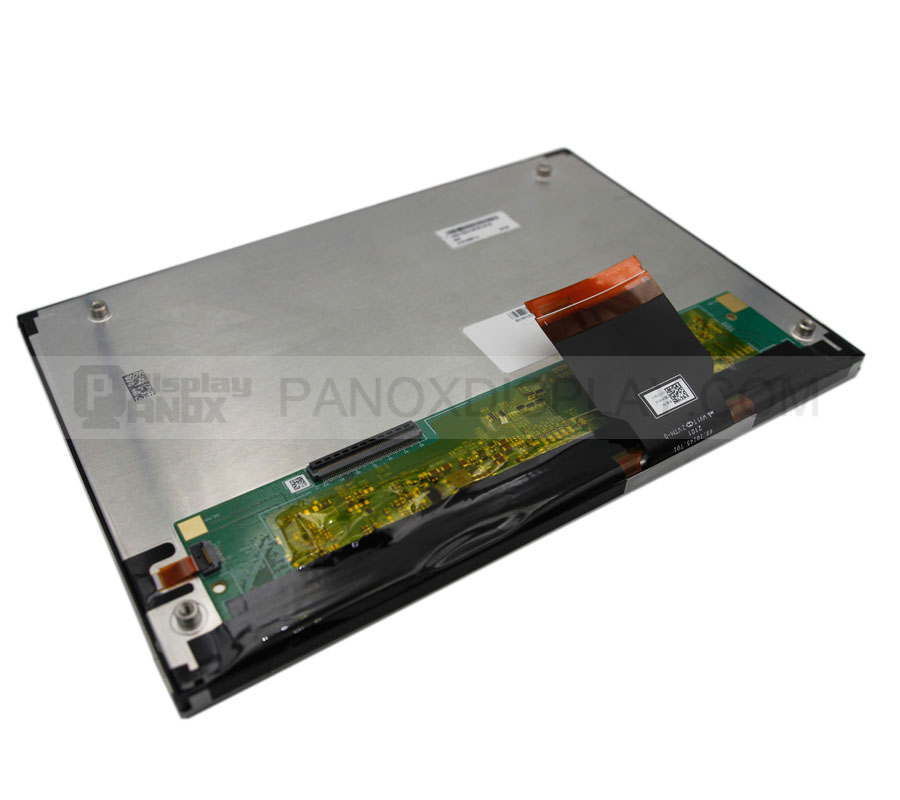

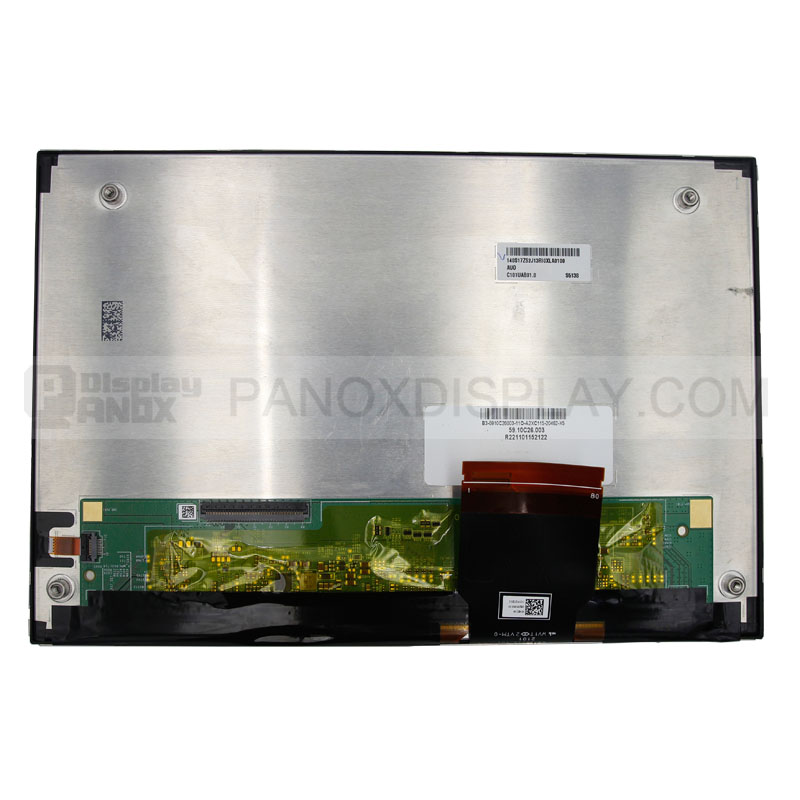

The FPC connector model is FH41-60S-0.5SHEO. This TFT-LCD has been used as an Automobile Console Display on Dodge Durango. Except for vehicle applications, it also can be used for Turn-Key Solution, ATMs, Train, Subway, Vending Machine, or any other Public machines.
Better material and better protection
The Industrial (or Vehicle) LCD has the following advantages compared to normal TFT-LCD,
1. Wide Operating Temperature (-30 ~ 85 °C)
2. High Brightness (1000 cd/m² )
3. Fine definition
4. Long lift time,  it can continuously work (24 hrs) for 5 years
5. Better material, High stability
6. High Contrast
7. Quake-proof
8. Anti-high temperature
9. Radioresistance (work well under the hot sun)

Anyway, different from normal displays for consumers, Industrial LCD is more like Prometheus, need to work and work without rest, so Industrial LCD has a higher price than other LCDs. But it`s worth it.

Following is a test video,

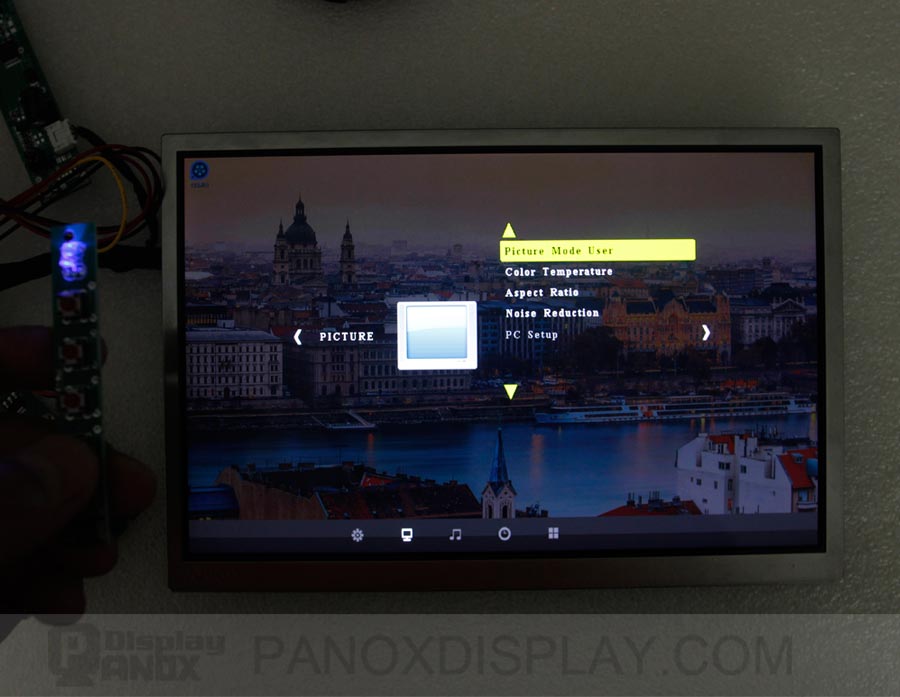

HDMI Controller Board for 10.1 inch LCD

This board also supports VGA, AV interface, and touch panel function

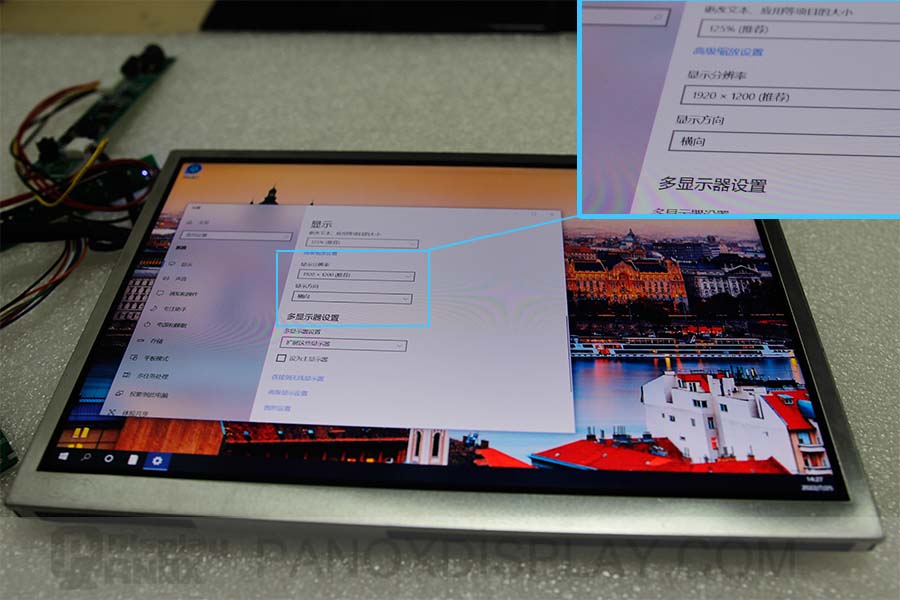

LVDS To HDMI connected With Computer

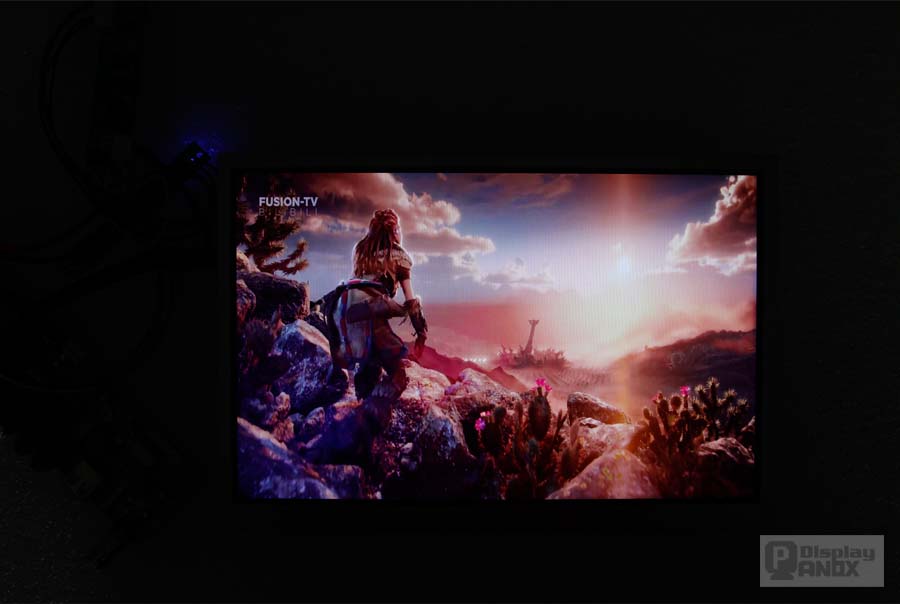

Vivid Color And High Brightness


Datasheet Download

File Name Description Language Tags Update Time Document Size Download
PL101FCL01.pdf Datasheet English AUO 10.1 LCD 2022-07-25 03:46:21 503.5KB

Panox Display values every opportunity to cooperate with clients, because TFT-LCD is very fragile, so we provide a solid package and the fastest way to ship. Panox Display has seven years experience of in international trade and served more than 1000 clients all over World.
It`s safe and convenient to work with Panox Display.


To make your development of the TFT-LCD driver more smooth, Panox Display will provide free connectors and an adapter board, engineers can directly fly lines to the main board.
If you need a customized board with HDMI/Type-C input, Panox Display also can meet your requirements.


Panox Display has built an automatic production line that can produce more than 50K displays per day. Its free dust factory can automatically bond IC, FPC, and backlight. Panox Display always keeps a skillful QC team to make sure every shipped display is without any quality problems.
Panox Display also provides customized LCD/OLED with a low-cost solutions.


Panox Display focuses on small and medium-size displays, from 0.39 inch to 15.6 inch, including all kinds of shapes, such as
rectangular displays, square displays, round/circular displays, and Long-strip displays.


Over the past 7 years, Panox Display has served clients all over the world, most of our clients are from developed countries, such as North America, Europe, East Asia, and Australia. With patient service, Panox Display has built good relationships with many clients including DIYers, engineers, purchasers, electronics traders, and company founders. Panox Display has reliable express shipped to any place in the world.

Our clients are from varieties of industries, from civil products to military level, including Vehicles, E-entertainment, Smartwatch, 3D printers, Turn-key solutions, Diving, and Medical.
With the development of technology, more and more products will need display panels. Panox Display also keeps following the latest display technology.


What do you wait for? Just start to develop with Panox Display`s panels.


Where can I buy this display?
If you just need a few samples, it`s better to directly on our Aliexpress store, we are 5 stars feedback supplier with 100% Honesty. (The buy link is on the right of the product image)
For bulk orders, it`s better to contact us and get a better price.
I don`t know which display is suitable for my project.
Different displays have different characteristics, just tell Panox Display your application, and operating environment, Panox Display will suggest a suitable display for you.
How can I test the display screen?
Panox Display provide HDMI/Type-C controller board or individual demo kit to test.
The pictures of demo kit can be changed by yourself.
How can I drive the display panel?
Panox Display will provide necessary specifications for most LCD/OLED on sale, including,
Display Datasheet
Display Drawing
IC Datasheet
Circuit schematic
For most electronics engineers, our specifications are enough to run the display, and we will provide some assistance.
But Panox Display is not a school, if customers don`t know the basic knowledge to design circuit board, we suggest using our controller board to drive the display.
Where can I get the cover glass or touch screen for this display panel?
First, you need to check whether this display has On-cell or In-cell touch panel, if has, it only needs to add a cover glass on it. If not, it needs an external touch panel.
(On-cell and In-cell are integrated PCAP touch panels on the display screen)
Because the shape of the cover glass depends on the design of the clients, to avoid infringement of appearance,  most of the developers need different customized touch panels.
Panox Display can provide a customized touch screen with a low cost of tooling charge.
How do Panox Display ship display panels?
1. UPS/Fedex/DHL/TNT, the best choice for most clients, 3~7 days to arrive.
2. Aliexpress standard ship, this way is cheap and slow, usually take more than 10 days. Only for samples.
3. For Russian clients, EMS or Aliexpress shipment is better.
4. Any designated logistics are acceptable
What`s the quality standard of Panox Display`s display panels?
Most display panels are from giant manufacturers such as BOE, Sharp, LG, EDO, AUO, etc. They have already tested with strict standards.
For OEM products from Panox Display factory, please check the quality test standards.
What`s the lifetime of these display panels?
The lifetime is different on different images, check the lifetime on datasheet to study it.
Can I connect this display to Raspberry Pi?
If your Raspberry Pi can support the interface of the display panel, and you know how to program on Raspberry Pi, you can connect to our display.
If you don`t know or don`t want to write a display program on Raspberry Pi, it`s better to get an HDMI controller board from us, and Panox Display will send a config.txt file for reference.

Model Name PL101FCL01
Display Type LCM , a-Si TFT-LCD
Display Brand AUO
Interface LVDS
Screen Size 10.1 inch
Orientation Landscape
Display Color Full Color
Manufacturer AUO
Resolution 1920(RGB)×1200 (WUXGA) 224PPI
Driver IC -
Consumption -
Active Area (mm) 217.44 × 135.9 (H×V)
Bezel Area (mm) -
Luminance 1000 cd/m² (Typ.)
Viewing Angle -
Color Depth 16.7M
Mass 608±60g
Refresh Rate 60Hz
Signal Type LVDS (2 ch, 8-bit) , 60 pins Connector
Voltage Supply 3.3V (Typ.)
Operating Temp -30 ~ 85 °C
Storage Temp -40 ~ 95 °C
Aspect Ratio 16:10 (H:V)
Screen Type TFT-LCD, LCM
Arrangement RGB Vertical Stripe
Outline (mm) 234.8 × 158.1 (H×V×D)
Treatment Hard coating (3H)
Contrast Ratio 1000:1 (Typ.) (Transmissive)
Response 25 (Max.)(Tr+Td) ms
Work Mode TN, Normally White, Transmissive
Backlight WLED
Used For Vehicle, Industrial Control, Turn Key
Touch Panel PCAP
Outdoor Visibility Readable Under Sun
