What Does “Automotive Display” Mean?
An automotive display is a screen solution used in vehicles to show driving information, navigation, camera views, passenger content, vehicle status, and control interfaces. It can be used in center consoles, digital instrument clusters, rearview mirror displays, public transport information screens, and industrial vehicle HMI systems.
For vehicle projects, the display should not only look clear, but also support reliable operation under real driving conditions, including changing light, temperature, vibration, and long working hours.
-
Size(inch)
- 0.39~1.0
- 1.0~1.9
- 2.0~2.9
- 3.0~3.9
- 4.0~4.9
- 5.0~5.9
- 6.0~6.9
- 7.0~7.9
- 8.0~9.9
- 10~20
-
Interface
- I2C
- SPI
- Parallal
- MCU
- CPU
- RGB
- MIPI
- LVDS
- eDP
- HDMI
-
Display Color
- Monochrome
- Double Color
- Full Color
-
Orientation
- Landscape
- Portrait
| Model | Size | Display Type | Resolution | Interface | Display Brand | Image | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
6.5 inch Industrial LCD 640x480 800 nits
|
6.5 inch | TFT-LCD | 640 x 480 | LVDS | AUO |
|
||||||||||
6.8 inch long strip LCD IPS TFT
|
6.8 | TFT-LCD | 480 x 1280 | MIPI | Tianma |
|
||||||||||
7.84 inch Long Strip LCD For Aida64 Sub Display
|
7.84 | TFT-LCD | 1280×400(RGB) 171PPI | MIPI | Tianma |
|
||||||||||
8 inch IPS TFT LCD 1024X768 LVDS Interface
|
8.0 inch | TFT-LCD | 1024(RGB)×768 [XGA] 160PPI | LVDS | Chimei Innolux |
|
||||||||||
8.8 inch Long Strip LCD Aida64 HDMI Board
|
8.8 | TFT-LCD | 1920×480(RGB) 222PPI | MIPI | HannStar |
|
||||||||||
10.1 inch LCD 1920x1200 For Automobile console HDMI Board
|
10.1 inch | LCM , a-Si TFT-LCD | 1920(RGB)×1200 (WUXGA) 224PPI | LVDS | AUO |
|
||||||||||
14 inch Long Strip LCD For Aviation HDMI Board
|
14 inch | TFT-LCD | 3840×1100 283PPI | LVDS,HDMI | BOE |
|
Common Applications for Automotive Displays
Automotive displays are widely used in smart cockpit systems, dashboard information bars, center console screens, rearview mirror displays, camera monitor systems, EV status interfaces, public transport route screens, and commercial vehicle control panels.
Different applications require different display formats. A center console may need a larger touch display, while a dashboard information bar or rearview mirror screen may need a long strip LCD. For industrial and commercial vehicles, high brightness, wide temperature operation, and stable interface support are usually more important.
What to Consider When Choosing an Automotive Display
When choosing an automotive display panel, the key factors include screen size, resolution, brightness, viewing angle, operating temperature, interface type, touch support, and mechanical fit.
For daylight or outdoor vehicle use, high luminance and anti-reflection performance can improve readability. For dashboards, commercial vehicles, and embedded systems, wide temperature range and long-term reliability are especially important. For custom HMI projects, controller board support such as HDMI, MIPI, LVDS, RGB, or eDP can make testing and integration easier.
Automotive Display Solutions from Panox Display
Panox Display provides LCD and OLED display solutions for vehicle-related applications, including long strip LCDs, industrial LCDs, touch display panels, high-brightness displays, and customized controller board solutions.
Our automotive display options can support smart cockpit development, dashboard display projects, rearview mirror screens, public transport information systems, commercial vehicle HMI, and other custom vehicle display applications.

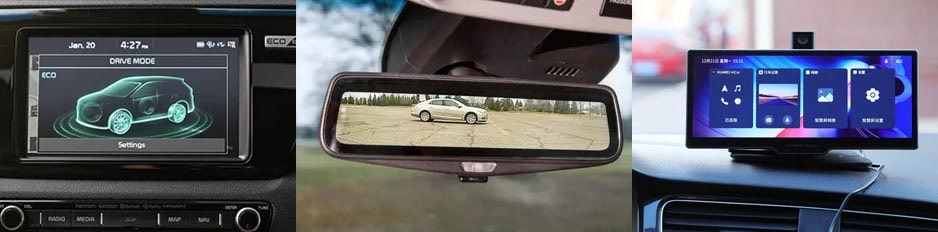

Panox Display provide high quality LCD/OLED display for vehicle mounted, including Rearview mirror screen and Console display.The vehicle bar screen adopts LCD technology, GSM/GPRS technology, low-temperature technology, anti-static technology, anti-interference technology, vehicle electronic technology, etc. to display information bar LCD display screen on the mobile vehicle, which is different from the ordinary bar LCD display screen installed in a fixed position.
On the technical level, because of its special application environment, the requirements of an LCD long strip screen are much higher than that of the traditional LED screen, which needs moisture-proof, rainproof, lightning-proof, sunscreen, dust-proof, cold-proof, anti-corrosion, anti-static, anti-interference, anti-seismic, anti-ultraviolet, and anti-oxidation. At the same time must have over current, short circuit, over-voltage, under voltage protection, and other functions, in order to become a qualified on-board screen.
Both the subway strip screen and the taxi LCD strip screen have the common characteristics of a wide audience and huge market potential.
More About Automotive Display
What Is an Automotive Display Panel? A Practical Guide for Vehicle HMI and Smart Cockpit Projects
Why Are Automotive Displays Important in Modern Vehicles?
Automotive Display Applications: Where Display Panels Are Used in Modern Vehicles
Customized Service
It`s just a beginning to get display panels from us, then clients need to solve cover glass/touch panel, driving board, connectors on PCB.Fortunately Panox Display provide complete display solutions.
Connectors
Panox Display provides free connectors for clients who purchase more than five products from us. Our product range includes connectors from Molex, Kyocera, AXE, AXG, JAE, Hiros, and more.
Cover Glass/Touch Panels
Panox Display provides a customized cover glass/touch panel service. We supply cover glass from Gorilla, AGC, and Panda, which all have excellent optical performance. We also supply driver ICs from Goodix and Focaltech.
Controller/Driver Boards
If your applications are directly connected to a PC, a cellphone, or Raspberry Pi, and you have enough space to insert a board to input video, Panox Display can provide customized Controller/Driver boards with input connections for VGA, HDMI, DVI, DP, Type-C video input, MIPI, RGB, LVDS, and eDP.
The functions of our boards include, but are not limited to, adjustment of brightness, sound output, touch interface, extra data transmission, and gyroscope.
