0.96 inch Graphic OLED For E-cigarette

0.96 inch Graphic OLED For E-cigarette

For a few displays with controllor board, it's better to buy from our online store. For development and batch order, or technical specification including datasheet, circuit schematics, initial code, customized cover glass, touch panel, please kindly contact us

Shop on Online Store


ModelNumber:PDO096W12864W01

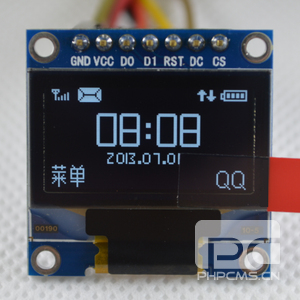

This is a 0.95 inch Graphic OLED (PM-OLED), 128x64 pixel, SSD1306, I2C interface, readable undersun.
Characteristics:

  • High-brightness
  • Self-emission
  • High-contrastratio
  • Slim/thin outline
  • Wide viewing angle
  • Wide temperaturerange
  • Low-power consumption

For PMOLED, there  are many models (Visionox, Univison) for a same size, and use different driver chip(SSD1306/SSD1308/SP5010/SH1107), please kindly contact us to confirm the right model.



Datasheet Download

File Name Description Language Tags Update Time Document Size Download


Model Name PDO096W12864W01
Display Type PMOLED
Display Brand Visonox/Univision
Interface I2C,SPI,Parallal
Screen Size 0.96
Orientation Landscape
Display Color Monochrome
Manufacturer Visonox/Univision
Resolution 128x64
Driver IC Built-in SSD1306/SSD1308/SP5010/SH1107
Consumption -
Active Area (mm) 10.86 × 21.74 (H×V)
Bezel Area (mm) -
Luminance 250 cd/m² (Typ.)
Viewing Angle Symmetry
Color Depth Mono(White/Blue/Yellow/B&Y)(1-bit)
Mass 0.96±0.09g
Refresh Rate -
Signal Type 4-wire SPI, I²C , FPC
Voltage Supply 3.0/9.0V (Typ.)(VDD/VPP)
Operating Temp -40 ~ 70 °C
Storage Temp -40 ~ 85 °C
Aspect Ratio 1:2 (H:V)
Screen Type PM-OLED, OLED
Arrangement Rectangle
Outline (mm) 14 × 28 × 1.3 (H×V×D) mm
Treatment -
Contrast Ratio 10000:1 (Typ.) (TM)
Response 0.01 (Typ.) ms
Work Mode -
Backlight self , 5K hours
Used For mp3, wearable
Touch Panel none
Outdoor Visibility Sunlight readable
