1.54 inch Graphic OLED Display Low Consumption

1.54 inch Graphic OLED Display Low Consumption

For a few displays with controllor board, it's better to buy from our online store. For development and batch order, or technical specification including datasheet, circuit schematics, initial code, customized cover glass, touch panel, please kindly contact us

Shop on Online Store

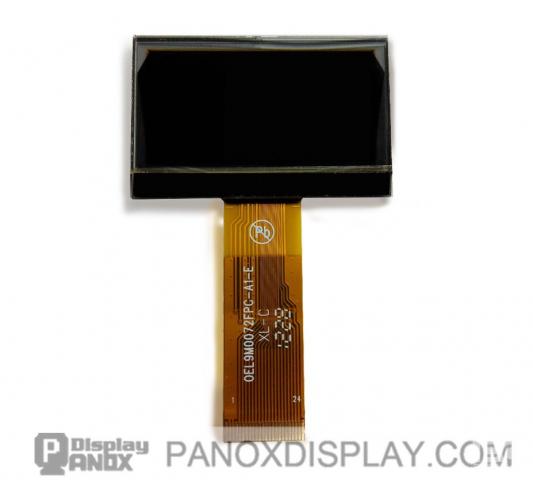

Model:PDO154B12864

This is a 1.54 inch Graphic OLED (PM-OLED), 128x64 pixel, SSD1309, SPI or I2C interface, readable undersun.

Characteristics:

  • High-brightness
  • Self-emission
  • High-contrastratio
  • Slim/thin outline
  • Wide viewing angle
  • Wide temperaturerange
  • Low-power consumption

For PMOLED, there  are many models (Visionox, Univison) for a same size, and use different driver chip, please kindly contact us to confirm the right model.

Panox Display keep sufficient inventory,

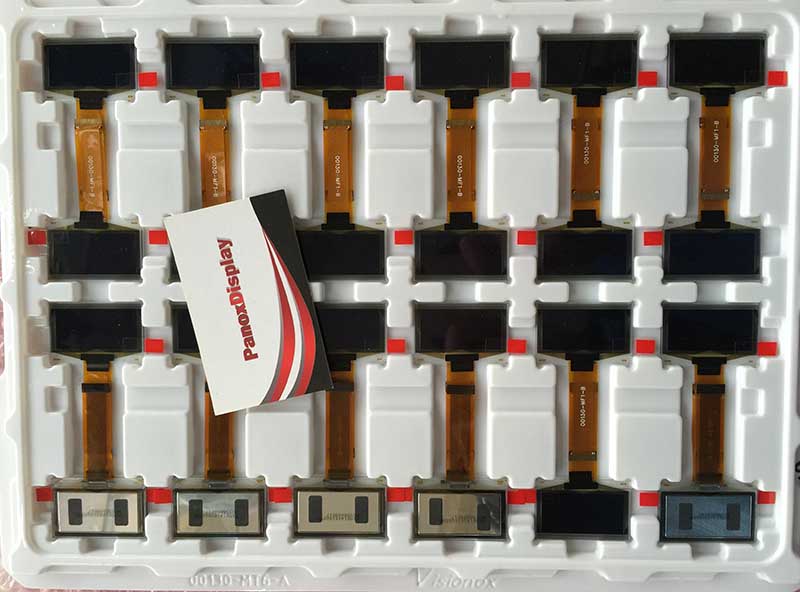

1.54_graphic_oled


Datasheet Download

File Name Description Language Tags Update Time Document Size Download


Model Name PDO154B12864
Display Type PMOLED
Display Brand Visonox/Truly
Interface I2C,SPI,CPU
Screen Size 1.54
Orientation Landscape
Display Color Monochrome
Manufacturer Visonox/Truly
Resolution 128×64
Driver IC Built-in SSD1309
Consumption -
Active Area (mm) 35.052(H)×17.516(V) mm
Bezel Area (mm) 37.052(H)×19.516(V) mm
Luminance 150 cd/m² (Typ.)
Viewing Angle -
Color Depth Mono(White/Blue/Yellow)
Mass 3.28g (Typ.)
Refresh Rate -
Signal Type 24 pins 8-bit 6800/8080 parallel, 3/4-wire SPI, I²C , FPC
Voltage Supply 2.8/12.5V (Typ.)(VDD/VCC)
Operating Temp -40 ~ 70 °C
Storage Temp -40 ~ 85 °C
Aspect Ratio 2:1(W:H)
Screen Type PM-OLED, OLED
Arrangement Rectangle
Outline (mm) 37.052×19.516 mm ×1.45±0.1 mm (H×V ×D)
Treatment -
Contrast Ratio 10000:1 (Typ.) (TM)
Response 0.01 (Typ.) ms
Work Mode -
Backlight self , 30K hours
Used For Industrial Application, Medical Equipment
Touch Panel Customized
Outdoor Visibility Sunlight readable
