1.3 inch Graphic OLED  White/Blue/Yellow On Black

1.3 inch Graphic OLED White/Blue/Yellow On Black

For a few displays with controllor board, it's better to buy from our online store. For development and batch order, or technical specification including datasheet, circuit schematics, initial code, customized cover glass, touch panel, please kindly contact us

Shop on Online Store


Model: PDO130B12864W01

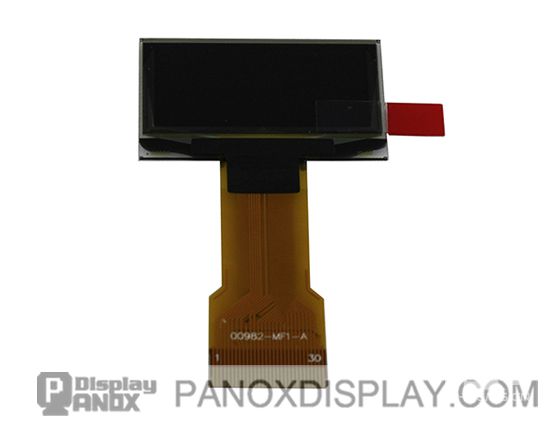

This is a 1.3 inch Graphic OLED (PM-OLED), 128x64 pixel, SSD1106G, parallel, 3/4-wire SPI,I2C interface, readable undersun.

Characteristics:

  • High-brightness
  • Self-emission
  • High-contrastratio
  • Slim/thin outline
  • Wide viewing angle
  • Wide temperaturerange
  • Low-power consumption

For PMOLED, there  are many models (Visionox, Univison) for a same size, and use different driver chip, please kindly contact us to confirm the right model.



Datasheet Download

File Name Description Language Tags Update Time Document Size Download


Model Name PDO130B12864W01
Display Type PMOLED
Display Brand Visonox/Univision
Interface I2C,SPI
Screen Size 1.3
Orientation Landscape
Display Color Monochrome
Manufacturer Visonox/Univision
Resolution 128x64
Driver IC SSD1106G
Consumption -
Active Area (mm) 29.42 x 14.7 mm²
Bezel Area (mm) 34.5 x 23 x 1.2 mm³
Luminance 80 cd/m² (Typ.)
Viewing Angle 80/80/80/80(Min)
Color Depth Mono(Blue)
Mass 2.18±0.22g
Refresh Rate -
Signal Type 8-bit 6800/8080 parallel, 3/4-wire SPI, I²C , FPC , 30 pins
Voltage Supply 2.8/12.0V (Typ.)(VDD/VCC)
Operating Temp -40 ~ 70 °C
Storage Temp -40 ~ 85 °C
Aspect Ratio 2:1 (H:V)
Screen Type PM-OLED, OLED
Arrangement -
Outline (mm) 34.5×23×1.45±0.1mm (H×V ×D)
Treatment -
Contrast Ratio 10000 : 1 (Typ.) (TM)
Response 0.01 (Typ.) ms
Work Mode -
Backlight self , 15K hours
Used For Industrial Application, Medical Equipment
Touch Panel Customized
Outdoor Visibility Sunlight readable
