2.4 inch Graphic OLED Display For Instrument

2.4 inch Graphic OLED Display For Instrument

For a few displays with controllor board, it's better to buy from our online store. For development and batch order, or technical specification including datasheet, circuit schematics, initial code, customized cover glass, touch panel, please kindly contact us

Shop on Online Store


Model: PDO240Y12864
This is a 2.4-inch Graphic OLED (PM-OLED), 128x64 pixel, SSD1303, SPI, I2C interface, and Low consumption.
Characteristics:
  • High-brightness
  • Self-emission
  • High-contrastratio
  • Slim/thin outline
  • Wide viewing angle
  • Wide temperaturerange
  • Low-power consumption

For PMOLED, there are many models (Visionox, Univision, Truly) of the same size, and use different driver chips, please kindly contact us to confirm the right model.

Panox Display keep sufficient inventory of 0.95 inch graphic OLED

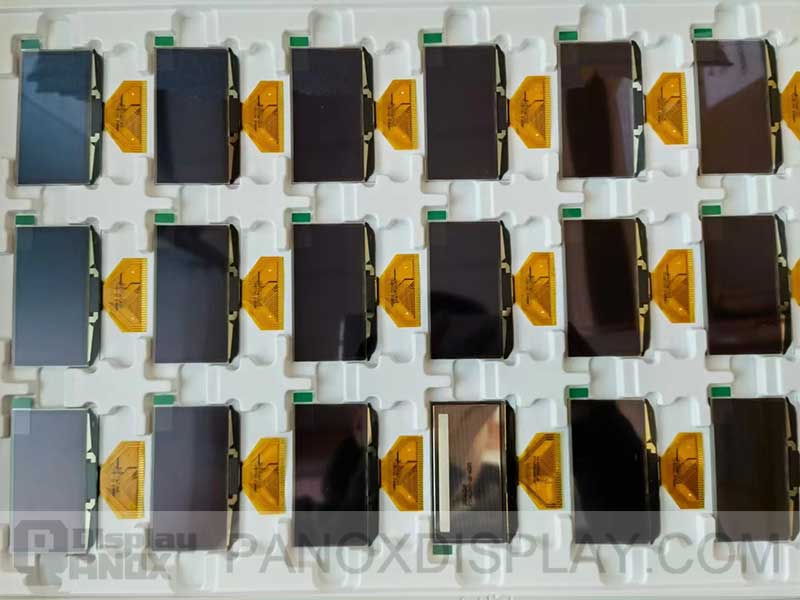

2.4_graphic_oled




Datasheet Download

File Name Description Language Tags Update Time Document Size Download


Model Name PDO240Y12864
Display Type PMOLED
Display Brand Ritdisplay
Interface I2C,SPI,Parallal
Screen Size 2.4
Orientation Landscape
Display Color Monochrome
Manufacturer Ritdisplay
Resolution 128×64
Driver IC TAB Built-in SSD1303
Consumption -
Active Area (mm) 55.01(H)×27.49(V) mm
Bezel Area (mm) 57.01(H)×29.49(V) mm
Luminance 80 cd/m² (Typ.)
Viewing Angle 80/80/80/80 (Min.)
Color Depth Mono(White/Green/Yellow)
Mass 9.59g (Typ.)
Refresh Rate 105Hz
Signal Type 31 pins 8-bit 6800/8080 parallel, SPI, I²C , FPC
Voltage Supply 13.0/2.7V (Typ.)(VCC/VDD)
Operating Temp -40 ~ 85 °C
Storage Temp -40 ~ 85 °C
Aspect Ratio 2:1 (H:V)
Screen Type PM-OLED, OLED
Arrangement Rectangle
Outline (mm) 60.5(H)×37(V) ×2.11(D) mm
Treatment Antiglare
Contrast Ratio 2000 : 1 (Min.) (TM)
Response 0.01 (Typ.) ms
Work Mode -
Backlight self , 50K hours
Used For Industrial Application, Medical Equipment
Touch Panel Customized
Outdoor Visibility Sunlight readable
