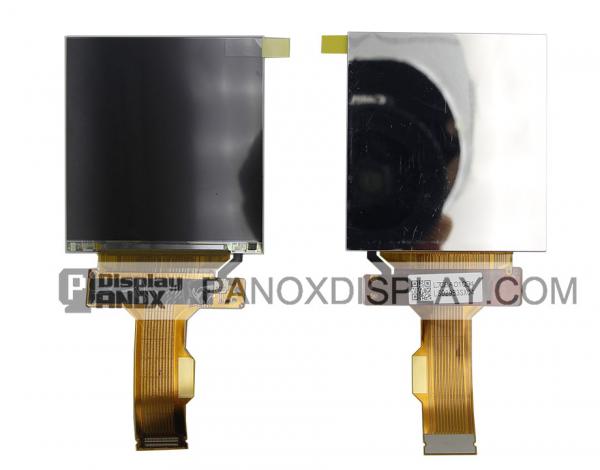

2.9 inch TFT-LCD 120 Hz For VR
For a few displays with controllor board, it's better to buy from our online store. For development and batch order, or technical specification including datasheet, circuit schematics, initial code, customized cover glass, touch panel, please kindly contact us
Shop on Online Store
Model: LS029B3SX04
Panox Display`s 2.9 inch LCD is a 1440x1440 color transmissive, high contrast, wide viewing angle, and active matrix LCD module incorporating CG-Silicon TFT ( Continuous Grain-Silicon Thin Film Transistor).It`s a FAST LCD made for VR handheld, with build-in R63423 communicates via MIPI interface.
Construction: LCD panel, Driver(COG), FPC with electric components, LEDs, a prism sheet, diffuser, light guide, reflector, and plastic frame to fix them mechanically.
Connection： Board to board plug connector (JAE WP7B-P040VA1)
Refresh Rate: 120 Hz

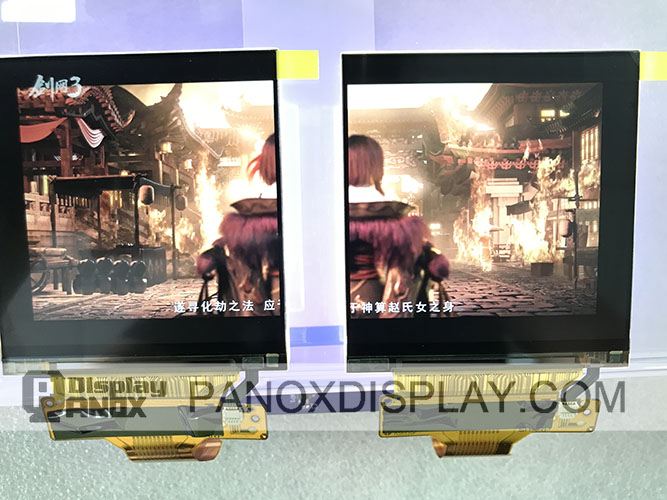

Range of application: VR( virtual reality), some near-eye machines that need high PPIPanox Display provide HDMI To MIPI DSI Controller Board to drive this 2.9 inch VR LCD
Both Dual MIPI and Single MIPI Board are available
Datasheet Download
