5.0 inch Round/Circular LCD Cover Glass Optional For Smart Home 5.0 inch Round/Circular LCD Cover Glass Optional For Smart Home

5.0 inch Round/Circular LCD Cover Glass Optional For Smart Home

For a few displays with controllor board, it's better to buy from our online store. For development and batch order, or technical specification including datasheet, circuit schematics, initial code, customized cover glass, touch panel, please kindly contact us

Shop on Online Store


Model: PL050HDC

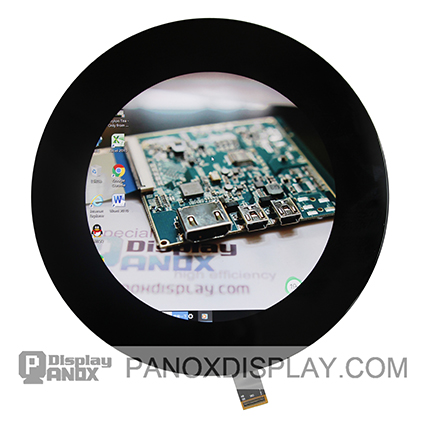

PL050HDC is a color active matrix TFT-LCD Panel using LTPS TFTs (Thin Film Transistors) as an active switching device. This model is composed of a TFT-LCD Panel, a driving circuit, and a backlight system. It is a transmissive type display operating in the normal black. This TFT-LCD has a 5.0-inch diagonally measured active area with FHD resolutions (1080 horizontal by 1080 vertical pixel array). Each pixel is divided into Red, Green, and Blue dots which are arranged in 1pixel 2 domain and this panel can display 16.7M
colors.
According to our experience, this round LCD is suitable for smart home, medical equipment, etc.
Panox Display also provides an HDMI driver board for this 5.0 round LCD, it allows users to connect to a PC and use this display as a monitor.
The highest refresh it supports is 60 Hz.

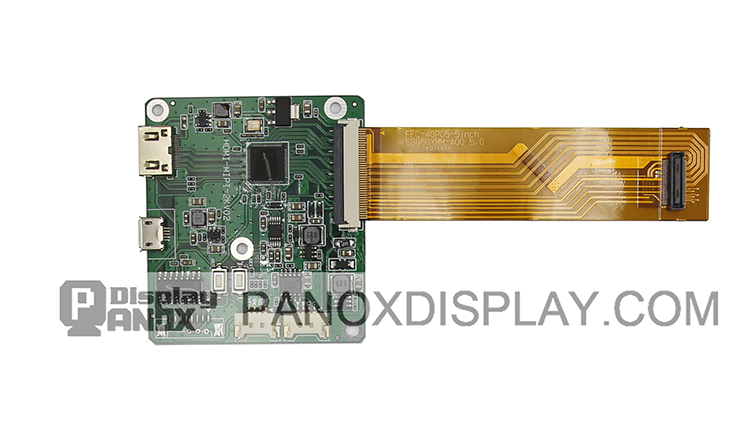

Panox Display provide HDMI To MIPI DSI Controller Board to drive this 3.4 inch round LCD




HDMI To MIPI DSI Convertor Board
5.0_lcd_controler_board

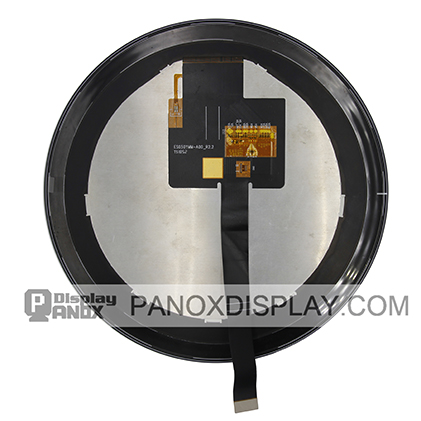

The original 5.0-inch round LCD is without cover glass, while a nice cover glass is available if users need it.




Datasheet Download

File Name Description Language Tags Update Time Document Size Download
5.0round_PL050HDC.pdf Datasheet English round lcd 2022-05-13 05:24:25 331.3KB


Model Name PL050HDC
Display Type TFT-LCD
Display Brand BOE
Interface MIPI
Screen Size 5.0
Orientation Landscape
Display Color Full Color
Manufacturer BOE
Resolution 1080X1080
Driver IC HX8399-C
Consumption 0.768 w
Active Area (mm) 127.008(H)X 127.008 (V) mm
Bezel Area (mm) 136.531X 132.208 X1.98 mm
Luminance 400 cd/m² (Typ.)
Viewing Angle 80/80/80/80 (Typ.)(CR≥10)
Color Depth 16.7M
Mass -
Refresh Rate 60Hz
Signal Type MIPI
Voltage Supply
Operating Temp -20 ~ 60 °C
Storage Temp -30 ~ 75 °C
Aspect Ratio 1:1 (W : H)
Screen Type TFT-LCD
Arrangement -
Outline (mm) 136.531X 132.208 X1.98 mm
Treatment -
Contrast Ratio 1300 : 1 (Min.) (TM)
Response 40 ms
Work Mode -
Backlight -
Used For Smart Home, Medical Equipment
Touch Panel none
Outdoor Visibility -
