Model: LS060R1SX02
Sharp always has a good performance for high-resolution LCD, and its transparency is also good enough for some optic applications such as 3D printing systems, and projectors.

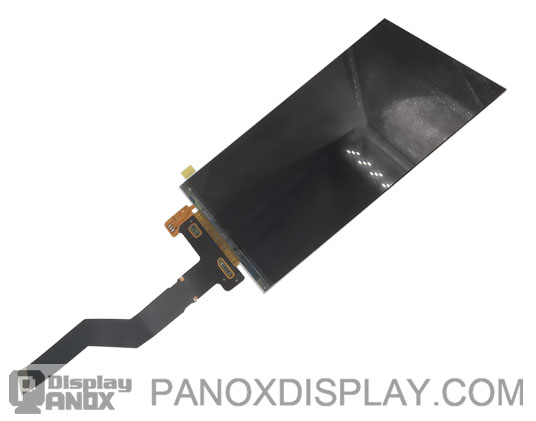

Construction: LCD panel, Driver (COG), FPC with electric components
16 White LED lumps, a prism sheet, diffuser, light guide and reflector, plastic frame, and PET Sheet to fix them mechanically
Connection: B to B connector ( Japan Aviation Electronics Industry, Ltd, WP7B-P050VA1 50 pins,0.4 mm pitch)
In order to realize a thin module structure, double-sided adhesive tapes are used to fix LCD panels.
Range of application: 3D Printing System, Mobile Phone, Projector, VR(virtual reality)
Datasheet Download
