0.95 inch OLED On-cell PACP TP For Wearable Bracelet
Shop on Online Store
Model: TR095A120SPC

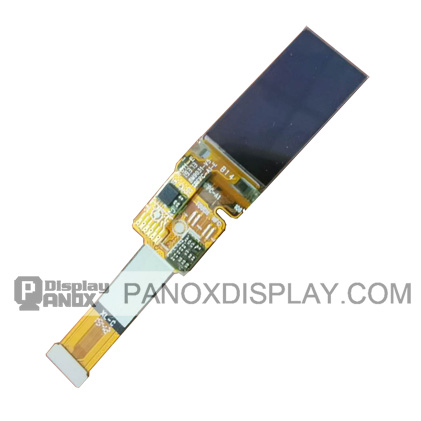

This is a 0.95-inch AMOLED Display with an integrated On-cell Capacitive Touchscreen, NFT function. It has 120x240 resolution and high luminance (400~500 cd/m2), RM69310 driver IC communicates via SPI interface. Outstanding display image, vivid color, wide-angle, super lightweight, thin like a paper, low consumption. Easily controlled by MCU such as STM32, GD32F, AVR, ARDUINO, ARM, and Raspberry Pi.
So this AMOLED is perfect for wearable devices such as bracelets, and smartwatches, but with the advantages of AMOLED including low consumption, high contrast, fast response time, wide operation temperature, and vivid image, it also can be widely used in color display, video phone, digital camera, medical device, military equipment, portable information devices, electronic lock, etc.
Wide Operating Temperature: Work well at low temperature -40℃
Panox Display provides a test board to drive this 0.95-inch OLED as follows,
Datasheet Download
| File Name | Description | Language | Tags | Update Time | Document Size | Download |
|---|---|---|---|---|---|---|
| TR095A120SPC_1-10.pdf | Datasheet | English | 0.95 oled | 2022-06-16 02:14:37 | 710.74KB |
| Model Name | TR095A120SPC |
|---|
| Display Type | AMOLED |
|---|
| Display Brand | Truly |
|---|
| Interface | SPI |
|---|
| Screen Size | 0.95 |
|---|
| Orientation | Portrait |
|---|
| Display Color | Full Color |
|---|
| Manufacturer | Truly |
|---|
| Resolution | 120(RGB)×240 |
|---|
| Driver IC | RM69310 |
|---|
| Consumption | - |
|---|
| Active Area (mm) | 10.8 X 21.6 mm |
|---|
| Bezel Area (mm) | 12.8 x 24.4 x 0.78 mm |
|---|
| Luminance | 400 ~500 cd/m² |
|---|
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) |
|---|
| Color Depth | 16.7 M colors (24 bits) |
|---|
| Mass | - |
|---|
| Refresh Rate | - |
|---|
| Signal Type | SPI |
|---|
| Voltage Supply | 1.8/2.8/4.6/-2.2 V (Max.)(VDDIO/VCI/ELVDD/ELVSS) |
|---|
| Operating Temp | -40 ~ 70 °C |
|---|
| Storage Temp | -40 ~ 80 °C |
|---|
| Aspect Ratio | 1:2 (H:V) |
|---|
| Screen Type | AM-OLED, OLED |
|---|
| Arrangement | - |
|---|
| Outline (mm) | 12.8 x 27.35 x 0.78 mm |
|---|
| Treatment | - |
|---|
| Contrast Ratio | 80000:1 (Typ.) (TM) |
|---|
| Response | - |
|---|
| Work Mode | - |
|---|
| Backlight | No B/L |
|---|
| Used For | Wearable, Smart watch |
|---|
| Touch Panel | PCAP, On-Cell |
|---|
| Outdoor Visibility | Sunlight readable |
|---|
