OLED Wearable Device

OLED(Organic Light Emitting Displaystechnology is growing in demand and has acquired a vast share in the wearable display market. Many smart bands and fitness watches adopt Amoled displays, offering smaller size, greater contrast, and low consumption. More advanced and sophisticated watches use Amoled displays, offering better resolution and high performance.  The growth in the demand for Oled displays in smartwatches, high specification display products, technological shift & development of energy-efficient products are the major factors responsible for the growth of the market and market attractiveness of the wearable display market.

As a professional Oled supplier, Panox Display offers a wide range of Amoled to the customers all over the world, about 70% of these are Amoled, 20% are Pmoled, 10% are LCD. A wide variety of Oled options are available to you.

There are about dozen Oled display panels are suitable for wearable device/ smart watch, including  0.69" 0.91" 0.95" 0.96" 1.8"(flexible) Pmoled panel and 1.2" 1.39" 1.4" 1.41" 1.45" 1.63" 1.7" Amoled , the following are some standard Oled panel applied to well-know wearable device.

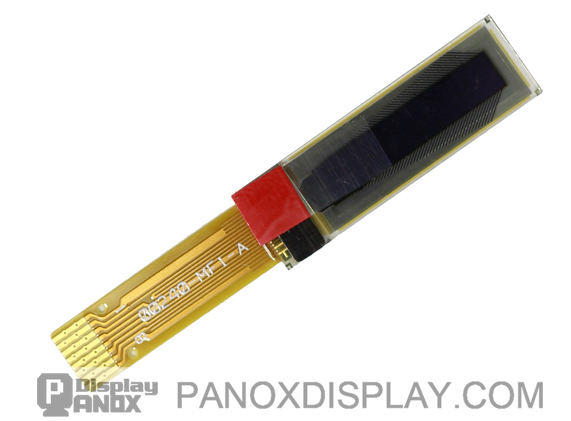

0.69_amoled_wearable
0.69 inch Pmoled
0.69 Pmoled is a monochrome Oled display module with a 128x32 dot matrix. The characteristics of this display module are high brightness, self-emission, high contrast ratio, slim/thin outline, wide viewing angle, wide temperature range, and low power consumption.
Display Color: White
Dot Matrix: 128x32
Driver IC: SSD1306Z
Wide range of operating temperature: -40
°C to 70 °C


Application products: LandFox sports fitness smart wristband, Trozun D08A wristband

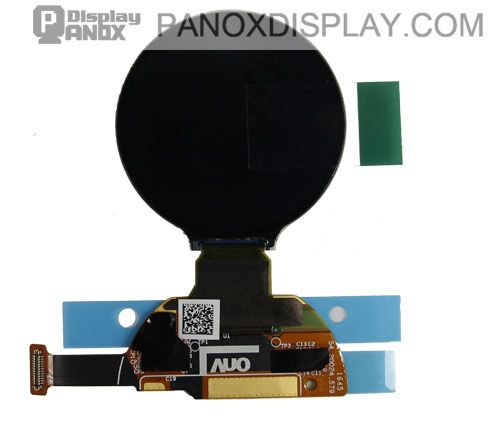

1.2_inch_Amoled_round_wearable1.2 inch Amoled
A smartwatch required information reminder, while the basic technical function such as timekeeping, navigation, interaction, etc. Most of the best-selling smartwatches use Amoled display module, because of its vivid image, low consumption and quick response.
Display Color: Full Color(16.7M)
Dot Matrix: 390x390
Driver IC: W022 ASIC
Wide range of operating temperature: -40 °C to 70 °C
Luminance:350 cd/m2
Sunlight readable


Application products: Huawei Honor Magic Smartwatch, Ticwatch E Smartwatch, Samsung Galaxy watch, Samsung Gear S2

1.39 inch Amoled,400x400
This is most used Amoled in hundreds of smartwatches all over the world.
Display Color: Full Color(16.7M)
Dot Matrix: 400x400
Driver IC: RM69080
Wide range of operating temperature: -40 °C to 70 °C
Luminance:300 cd/m2
Sunlight readable


Application products:  Asus ZEN Watch, ZTE Quartz T Mobile, Nixon Mission, New Balance RunIQ, Huawei Watch Elegant.

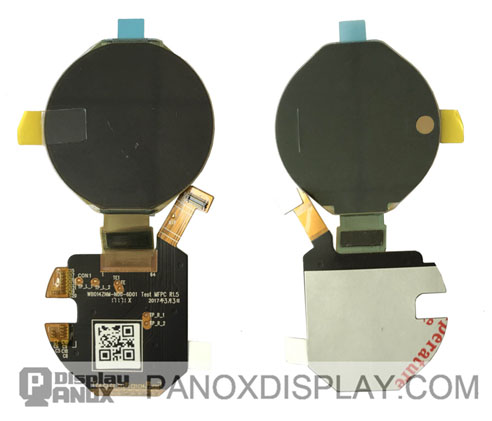

flexible_1.39_amoled_wearable
1.39 inch Amoled,400x400 (flexible)
A flexible edition of 1.39" Amoled

Display Color: Full Color(16.7M)
Dot Matrix: 400x400
Wide range of operating temperature: -40 °C to 70 °C
Luminance:300 cd/m2
Sunlight readable




Application products: ZGP S99C, DM368 Plus

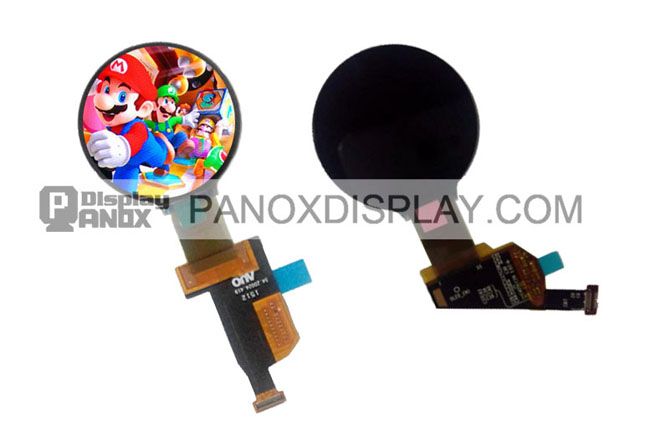

1.39_amoled_wearable
1.39 inch Amoled,454x454
This is a retina Amoled which reached the highest pixel density of 462 PPI, which is color active matrix Amoled module using Low-Temperature Poly-silicon TFT's (Thin Film Transistors) as active switching devices. Each pixel is divided into RED, GREEN, BLUE dots.

Display Color: Full Color(16.7M)
Dot Matrix: 400x400
Wide range of operating temperature: -40 °C to 70 °C
Luminance:300 cd/m2
Sunlight readable



Application products: Huawei Watch GT, Fossil Q Explorist

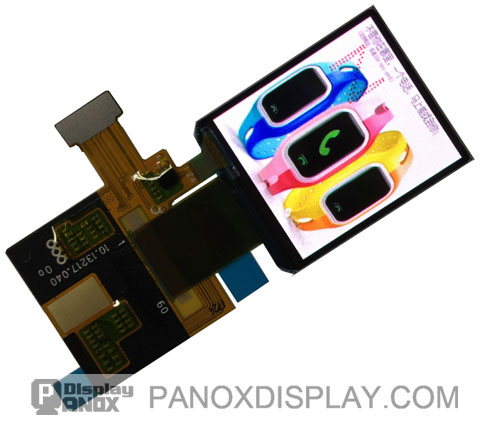

1.41 Amoled_wearable_smartwatch1.41 inch Amoled,320x360(CTP Integrated)
1.41" retina Amoled display and about 342 PPI make the display image vivid and true. The value of the high-energy harmful blue light (mW/sr/m2) of Amoled below 435nm is only 0.1*. Low blue light can protect your eyes.
Display Color: Full Color(16.7M)
Dot Matrix: 320x360
Driver IC: RM67162
Interface: Mipi 30 pins
Wide range of operating temperature: -40 °C to 70 °C
Luminance:300 cd/m2
Sunlight readable


Application products: XTC Kid samrtwatches Z2 Z3 Z5, Watshouts sports watch

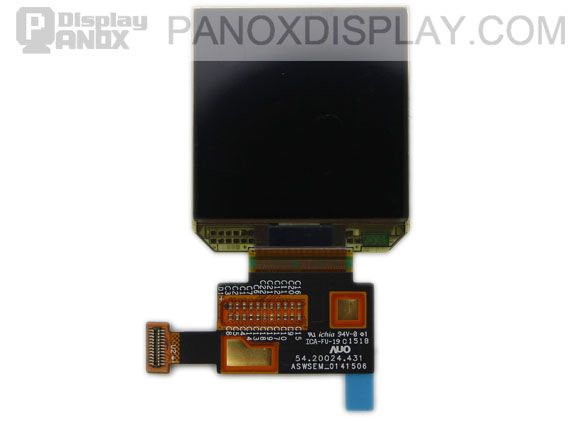

1.45_amoled_wearable_smartwatch
1.45 inch Amoled,280x280
1.45" retina Amoled reach a high pixel density of 342 PPI, make the display image vivid and true. It has the thinnest thickness of 0.7 mm compared to all the other displays.
Display Color: Full Color(16.7M)
Dot Matrix: 280x280
Interface: Mipi 20 pins
Wide range of operating temperature: -40 °C to 70 °C
Luminance:300 cd/m2
Sunlight readable

Application products: ASUS Zen Watch 2, Adidas miCoach



1.63_amoled_wearable_smartwatch1.63 inch Amoled,280x280
A smartwatch required information reminder, while the basic technical function such as timekeeping, navigation, interaction, etc. Most of the best-selling smartwatches use Amoled display module, because of its vivid image, low consumption and quick response.

Display Color: Full Color(16.7M)
Dot Matrix: 320x320
Interface: Mipi 20 pins
Driver IC: RM69032
Wide range of operating temperature: -40 °C to 70 °C
Luminance:300 cd/m2

Sunlight readable


Application products: ASUS WI501Q Smartwatch
For more specification such as datasheet, IC driver, please contact

Email: wesley@panoxdisplay.com
Skype: panoxwesley
QQ:
1822180287

Any inquiry will be replied within one day !
