8.8 inch Long Strip LCD Aida64 HDMI Board

For a few displays with controllor board, it's better to buy from our online store. For development and batch order, or technical specification including datasheet, circuit schematics, initial code, customized cover glass, touch panel, please kindly contact us

Shop on Online Store


Model: HSD088IPW1

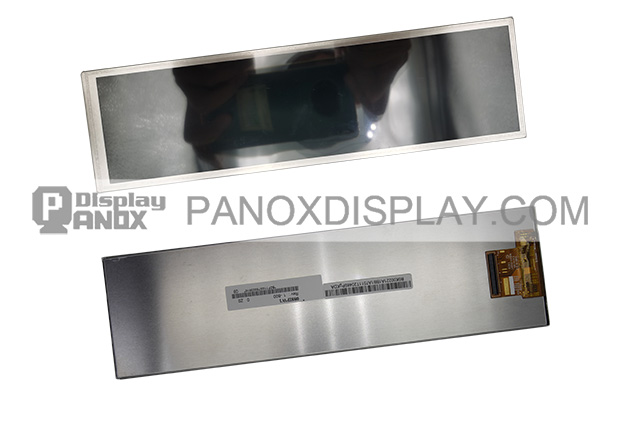

HannStar Display`s 8.8 inch TFT-LCD is a color-active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a TFT LCD panel, a driving circuit, and a backlight system. This TFT LCD has an 8.8 (1:4) inch diagonally measured active display area with (480 horizontal by 1920 vertical pixel) resolution.

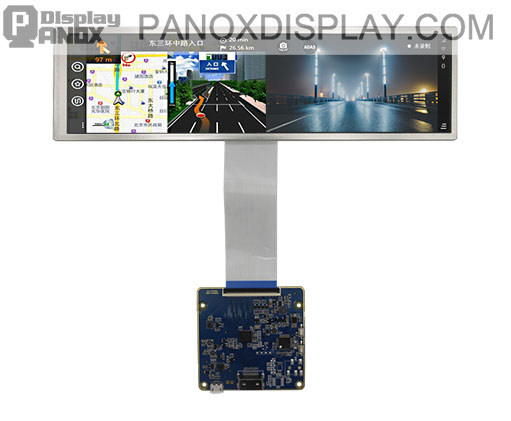

The application of 8.8 inch LCD: secondary LCD of PC, Vehicle, Car.

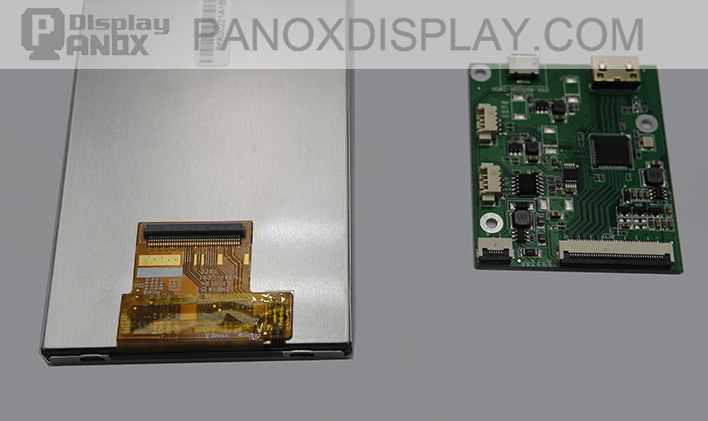

8.8_driverboard

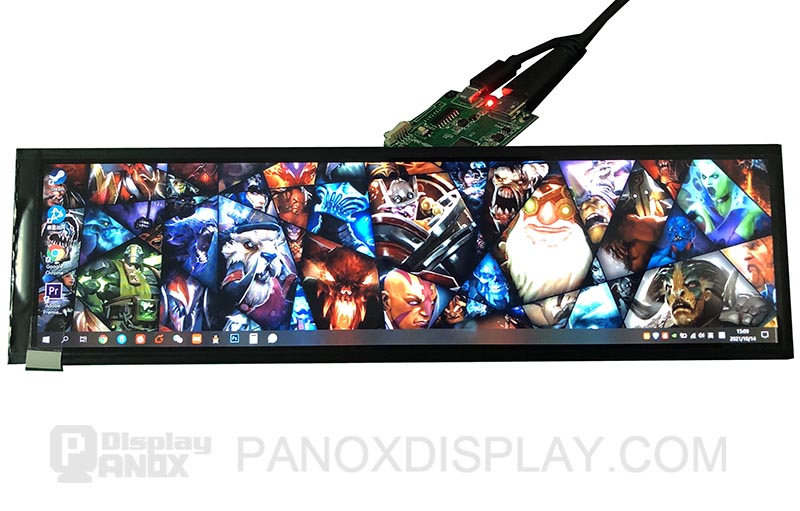

Panox Display provide HDMI to MIPI DSI Controller Board to drive this 8.8  stretched bar LCD

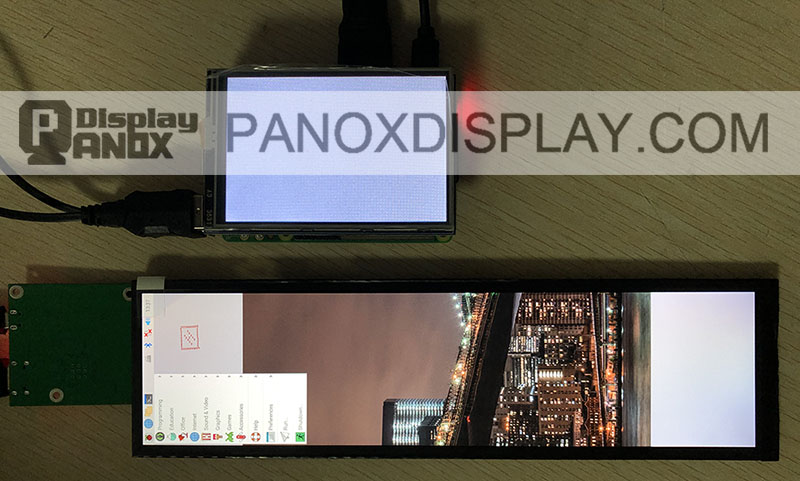

Tested With HDMI To MIPI DSI Controller Board Connected To Raspberry Pi 3B

lcd_board_raspberry

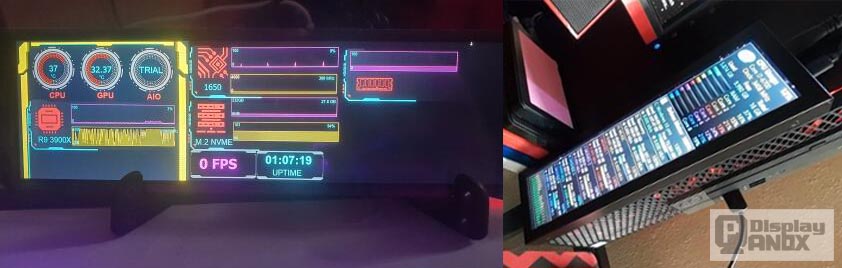

This 8.8 inch LCD is very popular with PC gamers as a secondary display, the customer can use AIDA64 to display temperatures, FPS, Frequency, and Memory Utilization. There are two versions to choose, with or without a shell. Panox Display also provides holders for each display.


Aida64 LCD

AIDA64 is a tool for testing software and hardware system information. It not only provides multiple functions such as overclocking assistance, hardware debugging, stress testing, and sensor monitoring, but also provides a comprehensive evaluation of processor, system memory, and disk drive performance. Can also monitor a variety of computer performance data, and performance monitoring functions in addition to hardware monitoring tools and OSD screen display items, there is an LCD tool, if you have an idle extended screen, may wish to use both to make a better performance data display for yourself.

aida64_lcd




Display Holder

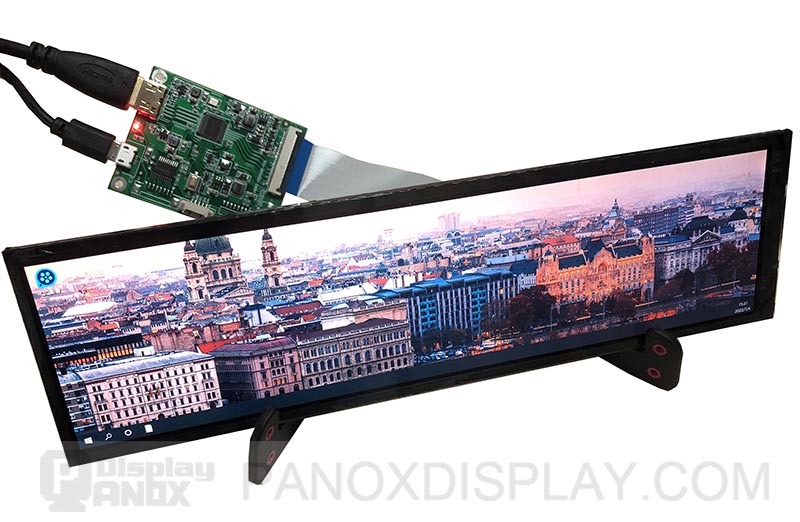

Panox Display can give a free holder if client buy display+board kit.88aida64_lcd



Panox Display also provide shell for this 8.8 inch LCD, withe and black version,

8.8LCD_shell



Datasheet Download

File Name Description Language Tags Update Time Document Size Download
HSD088IPW1.pdf Datasheet English 8.8 LCD 2022-05-13 03:47:35 288.47KB


Panox Display values every opportunity to cooperate with clients, because TFT-LCD is very fragile, so we provide a solid package and the fastest way to ship. Panox Display has seven years experience of in international trade and served more than 1000 clients all over World.
It`s safe and convenient to work with Panox Display.

logistics

To make your development of the TFT-LCD driver more smooth, Panox Display will provide free connectors and an adapter board, engineers can directly fly lines to the main board.
If you need a customized board with HDMI/Type-C input, Panox Display also can meet your requirements.

display_connectors

Panox Display has built an automatic production line that can produce more than 50K displays per day. Its free dust factory can automatically bond IC, FPC, and backlight. Panox Display always keeps a skillful QC team to make sure every shipped display is without any quality problems.
Panox Display also provides customized LCD/OLED with a low-cost solution.

lcd_produce

Panox Display focuses on small and medium-size displays, from 0.39 inch to 15.6 inch, including all kinds of shapes, such as
rectangular displays, square displays, round/circular displays, and Long-strip displays.

display_industries

Over the past 7 years, Panox Display has served clients all over the world, most of our clients are from developed countries, such as North America, Europe, East Asia, and Australia. With patient service, Panox Display has built good relationships with many clients including DIYers, engineers, purchasers, electronics traders, and company founders. Panox Display has reliable express shipped to any place in the world.

Our clients are from varieties of industries, from civil products to military level, including Vehicles, E-entertainment, Smartwatch, 3D printers, Turn-key solutions, Diving, and Medical.
With the development of technology, more and more products will need display panels. Panox Display also keeps following the latest display technology.

application_lcd


What do you wait for? Just start to develop with Panox Display`s panels.


FAQ


Where can I buy this display?

If you just need a few samples, it`s better to directly on our Aliexpress store, we are 5 stars feedback supplier with 100% Honesty. (The buy link is on the right of the product image)
For bulk orders, it`s better to contact us and get a better price.

I don`t know which display is suitable for my project.

Different displays have different characteristics, just tell Panox Display your application, and operating environment, Panox Display will suggest a suitable display for you.

How can I test the display screen?

Panox Display provide HDMI/Type-C controller board or individual demo kit to test.
The pictures of demo kit can be changed by yourself.

How can I drive the display panel?

Panox Display will provide necessary specifications for most LCD/OLED on sale, including,
Display Datasheet
Display Drawing
IC Datasheet
Circuit schematic
For most electronics engineers, our specifications are enough to run the display, and we will provide some assistance.
But Panox Display is not a school, if customers don`t know the basic knowledge to design circuit board, we suggest using our controller board to drive the display.
display_fae

Where can I get the cover glass or touch screen for this display panel?

First, you need to check whether this display has On-cell or In-cell touch panel, if has, it only needs to add a cover glass on it. If not, it needs an external touch panel.
(On-cell and In-cell are integrated PCAP touch panels on the display screen)
Because the shape of the cover glass depends on the design of the clients, to avoid infringement of appearance,  most of the developers need different customized touch panels.
Panox Display can provide a customized touch screen with a low cost of tooling charge.
touch_screen


How do Panox Display ship display panels?

1. UPS/Fedex/DHL/TNT, the best choice for most clients, 3~7 days to arrive.
2. Aliexpress standard ship, this way is cheap and slow, usually take more than 10 days. Only for samples.
3. For Russian clients, EMS or Aliexpress shipment is better.
4. Any designated logistics are acceptable

What`s the quality standard of Panox Display`s display panels?

Most display panels are from giant manufacturers such as BOE, Sharp, LG, EDO, AUO, etc. They have already tested with strict standards.
For OEM products from Panox Display factory, please check the quality test standards.

What`s the lifetime of these display panels?

The lifetime is different on different images, check the lifetime on datasheet to study it.

Can I connect this display to Raspberry Pi?

If your Raspberry Pi can support the interface of the display panel, and you know how to program on Raspberry Pi, you can connect to our display.
If you don`t know or don`t want to write a display program on Raspberry Pi, it`s better to get an HDMI controller board from us, and Panox Display will send a config.txt file for reference.


Model Name HSD088IPW1-A00
Display Type TFT-LCD
Display Brand HannStar
Interface MIPI
Screen Size 8.8
Orientation Landscape
Display Color Full Color
Manufacturer HannStar
Resolution 1920×480(RGB) 222PPI
Driver IC -
Consumption -
Active Area (mm) 218.88(H)×54.72(V) mm
Bezel Area (mm) -
Luminance 600 cd/m² (Typ.)
Viewing Angle 85/85/85/85 (Typ.)(CR≥10)
Color Depth 16.7M 50% NTSC
Mass 100g (Typ.)
Refresh Rate 60Hz
Signal Type MIPI (4 data lanes) , 40 pins Connector
Voltage Supply 3.3/12.0/20.0/-10.0V (Typ.)(VDD/AVDD/VGH/VGL)
Operating Temp -20 ~ 70 °C
Storage Temp -30 ~ 80 °C
Aspect Ratio >3:1
Screen Type a-Si TFT-LCD , LCM
Arrangement RGB Horizontal Stripe
Outline (mm) 231.3(H)×64.3(V) ×6.4(D) mm
Treatment Hard coating
Contrast Ratio 800:1 (Typ.) (TM)
Response 30 (Typ.)(Tr+Td)
Work Mode IPS Pro, Normally Black, Transmissive
Backlight WLED , 30K hours , W/O Driver
Used For Car Sub-screen of PC
Touch Panel Customized
Outdoor Visibility -
