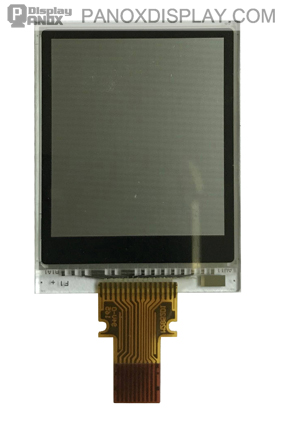

1.26 inch Memory LCD For Wearable Smarwatch
For a few displays with controllor board, it's better to buy from our online store. For development and batch order, or technical specification including datasheet, circuit schematics, initial code, customized cover glass, touch panel, please kindly contact us
Shop on Online Store
Model: LS013B7DH01
This TFT-LCD module is a reflective active matrix with slightly transmissive memory liquid crystal display module with CG silicon thin film transistor
.Reflective active-matrix with a slightly transmissive panel of white and black
.1.26" screen has 144 x 168 resolution. (24,192 pixels stripe array)
.Display control by serial data signal communication
.Arbitary line data renewable
.1 bit internal memory for the compact module with monolithic technology
.Thin, light-weight, and compact module with monolithic technology
.Super low power consumption TFT panel
.Front polarizer surface is Antiglare
Range of application: Electronic Price Tag, Wearable, Smart Bracelet, Industrial, Military
