Model: MO103F2560

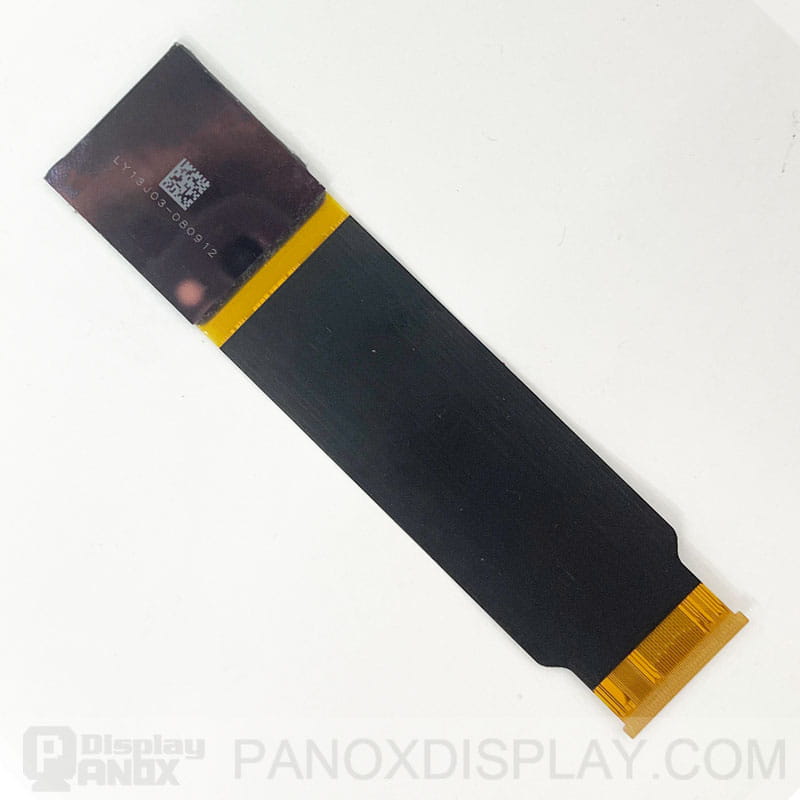

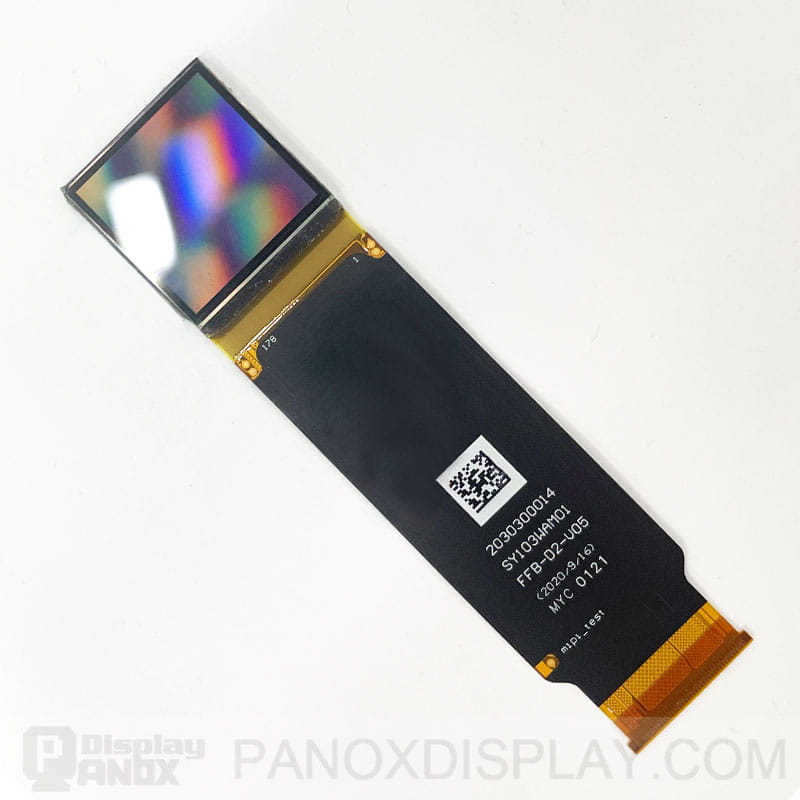

The MO103F2560 is a high-performance 1.03 inch Micro OLED display module featuring an ultra-high 2560 × 2560 RGB resolution based on single-crystal silicon transistor technology. Designed for next-generation near-eye display applications, this Micro OLED panel combines exceptional image clarity, ultra-high contrast, lightweight structure, and low power consumption in an extremely compact size.

With a pixel size of only 7.2μm and a usable display area of 18.432 × 18.432 mm, the display delivers highly detailed visual performance suitable for VR headsets, AR smart glasses, electronic viewfinders, thermal imaging systems, and professional optical devices.

This Micro OLED display supports full-color 16.7 million color output and provides a typical luminance of 1800 cd/m² with an ultra-high contrast ratio of 500,000:1, ensuring vivid colors, deep blacks, and excellent visual immersion.

The module adopts a MIPI DSI interface with one-port or two-port D-PHY support and supports VESA DSC compression technology for high-speed image transmission. The display also supports scaling functions from 1280×1280 and 1920×1920 input resolutions up to native 2560×2560 resolution.

Thanks to its lightweight 2g design and operating temperature range from -30°C to +70°C, the MO103F2560 is suitable for industrial, wearable, military, medical, and professional imaging applications requiring compact size and premium image quality.


Demonstration

Features

• 1.03 inch Micro OLED display
• 2560 × 2560 ultra-high resolution
• Real RGB pixel arrangement
• 1800 nits high brightness
• 500,000:1 ultra-high contrast ratio
• MIPI DSI interface
• 1-port or 2-port D-PHY support
• VESA DSC v1.1 decoder support
• 60Hz to 90Hz refresh rate
• Compact and lightweight design
• Wide operating temperature range
• Suitable for AR/VR applications

Applications

• AR smart glasses
• VR head-mounted displays
• Electronic viewfinders
• Thermal imaging devices
• Medical optical equipment
• Industrial wearable devices
• Military imaging systems
• Portable optical instruments

Datasheet Download

Panox Display values every opportunity to cooperate with clients, because OLED display is fragile, so we provide a solid package and the fastest way to ship. Panox Display has seven years experience of in international trade and served more than 1000 clients all over World.
It`s safe and convenient to work with Panox Display.



To make your development of the OLED display driver more smooth, Panox Display will provide free connectors and an adapter board, engineers can directly fly lines to the main board.
If you need a customized board with HDMI/Type-C input, Panox Display also can meet your requirements.



Panox Display has built an automatic production line that can produce more than 50K displays per day. Its free dust factory can automatically bond IC, FPC, and backlight. Panox Display always keeps a skillful QC team to make sure every shipped display is without any quality problems.
Panox Display also provides customized LCD/OLED with a low-cost solution.



Panox Display focuses on small and medium-size displays, from 0.39 inch to 15.6 inch, including all kinds of shapes, such as rectangular displays, square displays, round/circular displays, and Long-strip displays.



Over the past 7 years, Panox Display has served clients all over the world, most of our clients are from developed countries, such as North America, Europe, East Asia, and Australia. With patient service, Panox Display has built good relationships with many clients including DIYers, engineers, purchasers, electronics traders, and company founders. Panox Display has reliable express shipped to any place in the world.

Our clients are from varieties of industries, from civil products to military level, including Vehicles, E-entertainment, Smartwatch, 3D printers, Turn-key solutions, Diving, and Medical.
With the development of technology, more and more products will need display panels. Panox Display also keeps following the latest display technology.




What do you wait for? Just start to develop with Panox Display`s panels.

FAQ



Where can I buy this display？

If you just need a few samples, it`s better to directly on our Aliexpress store, we are 5 stars feedback supplier with 100% Honesty. (The buy link is on the right of the product image)
For bulk orders, it`s better to contact us and get a better price.

I don`t know which display is suitable for my project.

Different displays have different characteristics, just tell Panox Display your application, and operating environment, Panox Display will suggest a suitable display for you.

How can I test the display screen?

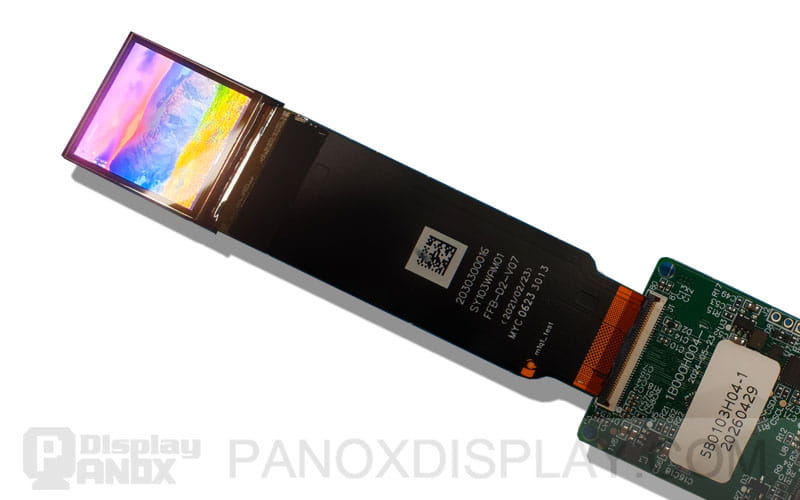

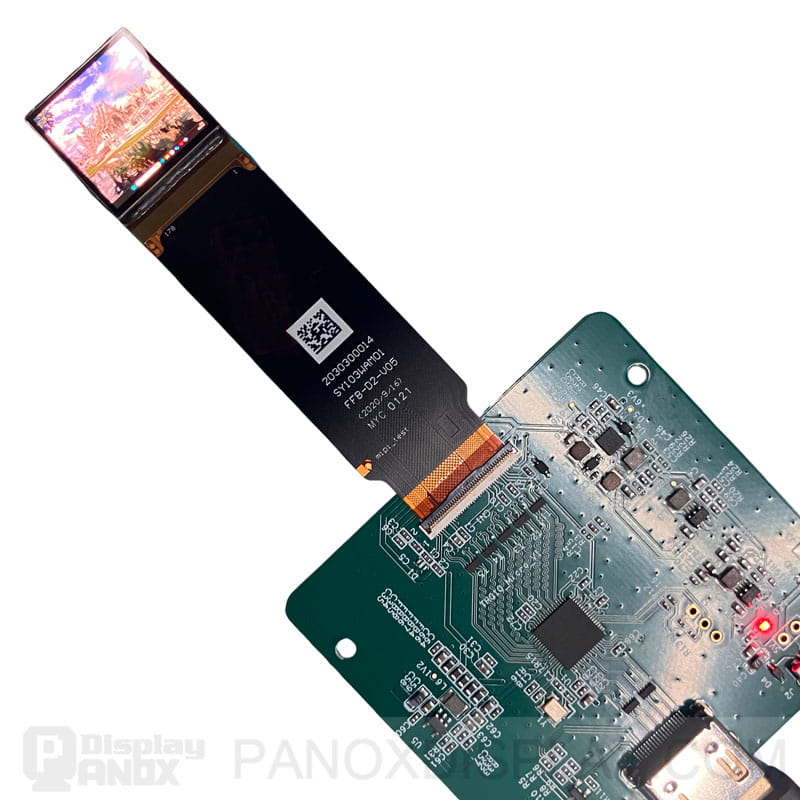

Panox Display provide HDMI/Type-C controller board or individual demo kit to test.
The pictures of demo kit can be changed by yourself.

How can I drive the display panel?

Panox Display will provide necessary specifications for most LCD/OLED on sale, including,
Display Datasheet
Display Drawing
IC Datasheet
Circuit schematic
For most electronics engineers, our specifications are enough to run the display, and we will provide some assistance.
But Panox Display is not a school, if customers don`t know the basic knowledge to design circuit boards, we suggest using our controller board to drive the display.


Where can I get the cover glass or touch screen for this display panel?

First, you need to check whether this display has On-cell or In-cell touch panel, if has, it only needs to add a cover glass on it. If not, it needs an external touch panel.
(On-cell and In-cell are integrated PCAP touch panels on the display screen)
Because the shape of the cover glass depends on the design of the clients, to avoid infringement of appearance,  most of the developers need different customized touch panels.
Panox Display can provide a customized touch screen with a low cost of tooling charge.



How do Panox Display ship display panels?

1. UPS/Fedex/DHL/TNT, the best choice for most clients, 3~7 days to arrive.
2. Aliexpress standard ship, this way is cheap and slow, usually take more than 10 days. Only for samples.
3. For Russian clients, EMS or Aliexpress shipment is better.
4. Any designated logistics are acceptable

What`s the quality standard of Panox Display`s display panels?

Most display panels are from giant manufacturers such as BOE, Sharp, LG, EDO, AUO, etc. They have already tested with strict standards.
For OEM products from Panox Display factory, please check the quality test standards.

What`s the lifetime of these display panels?

The lifetime is different on different images, check the lifetime on datasheet to study it.

Can I connect this display to Raspberry Pi?

If your Raspberry Pi can support the interface of the display panel, and you know how to program on Raspberry Pi, you can connect to our display.
If you don`t know or don`t want to write a display program on Raspberry Pi, it`s better to get an HDMI controller board from us, and Panox Display will send a config.txt file for reference
