0.71 inch Micro OLED 1920x1080 LVDS 3000 nits
For a few displays with controllor board, it's better to buy from our online store. For development and batch order, or technical specification including datasheet, circuit schematics, initial code, customized cover glass, touch panel, please kindly contact us
Shop on Online Store
Model: ECX335SN-6
ECX335SN is a 1.8 cm (0.71inxh) diagonal, 1920(RGB) × 1080 dots active matrix color OLED (Organic Light Emitting Display) panel module based on single crystal silicon transistors. The module integrates panel driver and logic driver, and achieves smaller size, light in weight and high resolution.
The structure
Active matrix color OLED display with on-chip driver based on single crystal silicon transistors

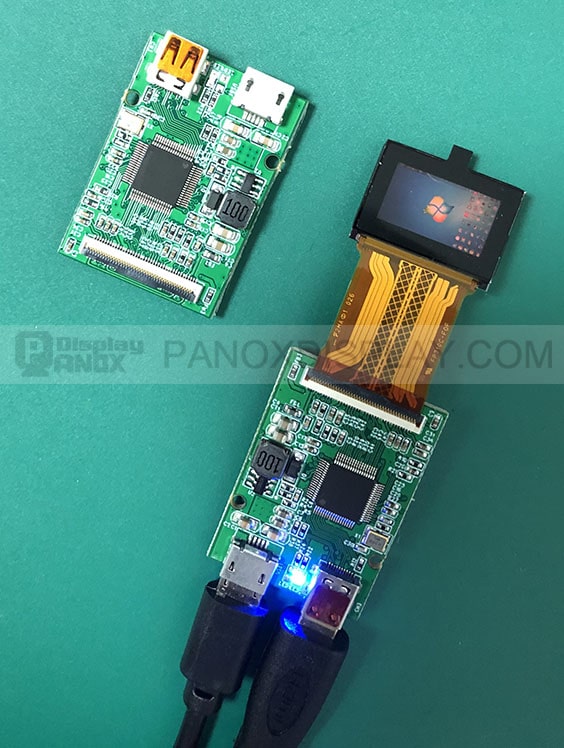

Demonstration with HDMI/Type-C Controller Board
Potential Applications
AR, MR, Head mounted displays, View finders, Small monitors etc.
Features
◆ Small size and high resolution type 0.70 display
◆ Effective dots: 1920 (RGB)×1080 = 6.22 M dots
◆ Ultra high contrast
◆ Wide color gamut
◆ Fast response speed
◆ Thin and light in weight
◆ Power saving (PS) function
◆ Scan direction selection, up or down and right or left.
◆ Orbit supported
HDMI Controller Board
Type-C Dual Eyes Controller Board
Customized Extend FPC
Longer FPC enable developers to be convenient to design MR glass.
