As mobile workstations, professional creator laptops, and high-end industrial visualization terminals increasingly demand displays that are both sharper and smoother, 15.6-inch 4K high-refresh panels are shifting from a “nice-to-have” to a core requirement in premium devices. AUO’s B156ZAN05.1 TFT-LCD module is a representative example of this trend: within a standard 15.6-inch form factor, it combines UHD resolution, a 120Hz refresh rate, and a professional wide color gamut, setting a new visual benchmark for performance laptops and industrial display units.
Related: high-refresh-rate display panel
Why “4K + High Refresh” Matters More Than Ever in a 15.6-inch Panel
For years, 4K was often discussed mainly in terms of “video clarity.” In today’s professional workflows, however, UHD (3840×2160) paired with 120Hz addresses something more fundamental: interaction efficiency.
·Extremely high information density: With 3840×2160 pixels, a single screen can comfortably present complex control panels, waveforms, and multi-window spreadsheets—without sacrificing layout just to keep text readable.
·Cleaner visuals for precision work: A pixel density around 283 PPI helps render thin lines in engineering drawings and crisp edges in UI elements, reducing visual fatigue during long sessions.
·Smoother dynamic interaction: The benefit of 120Hz is immediate. Dragging windows, zooming timelines, switching viewpoints, and fast previewing feel noticeably more responsive—minimizing the blur and “stutter” commonly associated with traditional 60Hz panels.
Learn more: TFT-LCD
Deep Dive: What the Key Specs Mean in Real Use

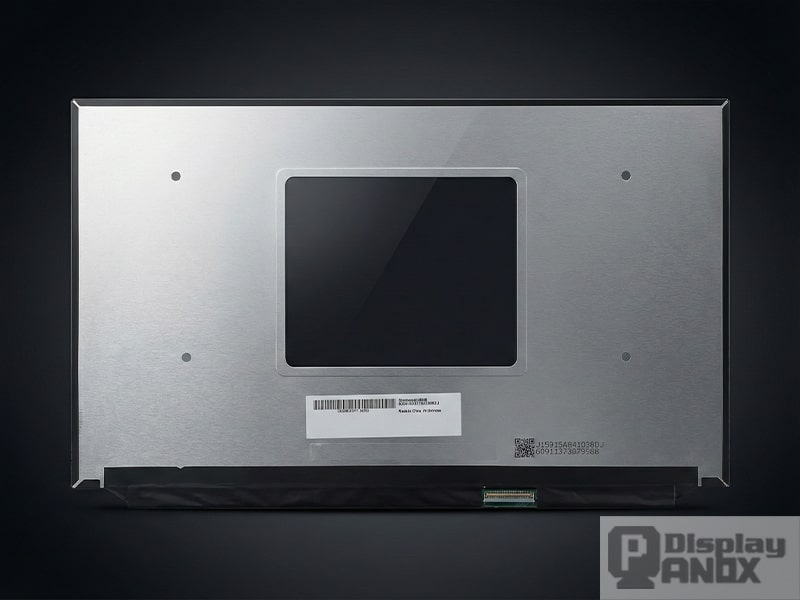

B156ZAN05.1 Backplate
AUO doesn’t simply stack numbers on the B156ZAN05.1. The configuration reflects a deliberate balance aimed at premium applications.
1) Professional Color Performance and Better Readability
For creators and color-sensitive industries, the standout metric is gamut coverage. The panel supports 100% Adobe RGB (Typ.), enabling richer green/cyan gradations than typical sRGB displays—useful for print workflows, photo retouching, and certain medical imaging tasks. Combined with an Anti-Glare surface treatment, it also helps suppress reflections in bright or complex lighting environments, improving on-screen readability and reducing glare-related misinterpretation.Related: readable-under-sun display panel
2) High Brightness and Wide Viewing Angles
Optically, the module delivers 400 cd/m² (Typ.) brightness and 1000:1 (Typ.) contrast, alongside wide viewing angles up to 85° in all directions (CR > 10). This makes it well-suited for collaborative viewing—whether several people are reviewing a design on a laptop or operators are reading data from the side of an industrial terminal.3) Optimized Motion Response
Beyond the 120Hz refresh rate, the panel’s gray-to-gray response time (G to G) is 8.3 ms (Typ.). This supports clearer motion in fast scrolling content, real-time dashboards, and monitoring views—helping text and graphics remain sharper with fewer visible afterimages.4) Engineering-Friendly Integration
For system integration, B156ZAN05.1 uses a mature 4-Lane eDP 1.4 interface (40-pin) and supports a wide backlight input voltage range (9V–21V, 12V typical). PWM dimming is supported across a broad frequency window (200Hz–10kHz), giving OEMs flexibility for brightness curves, flicker management, and power optimization strategies.B156ZAN05.1 Spec Snapshot (Quick Read)
| Specification Item | Detail |
| Model Name |
AUO B156ZAN05.1 (H/W: 2A) |
| Panel Size |
15.6 inch Diagonal |
| Resolution |
3840 × 2160 (UHD) |
| Refresh Rate |
120Hz |
| Brightness |
400 cd/m² (Typ.) / 340 cd/m² (Min.) |
| Contrast Ratio |
1000 : 1 (Typ.) |
| Color Depth |
16.7M Colors (RGB 8-bit) |
| Color Gamut |
100% Adobe RGB (Typ.) |
| Response Time |
8.3ms (Gray to Gray, Typ.) |
|
Interface |
eDP 1.4 (4 Lane), 40-pin Connector |
| Surface Treatment |
Anti-Glare |
| Operating Temp. |
0 ~ +50°C |

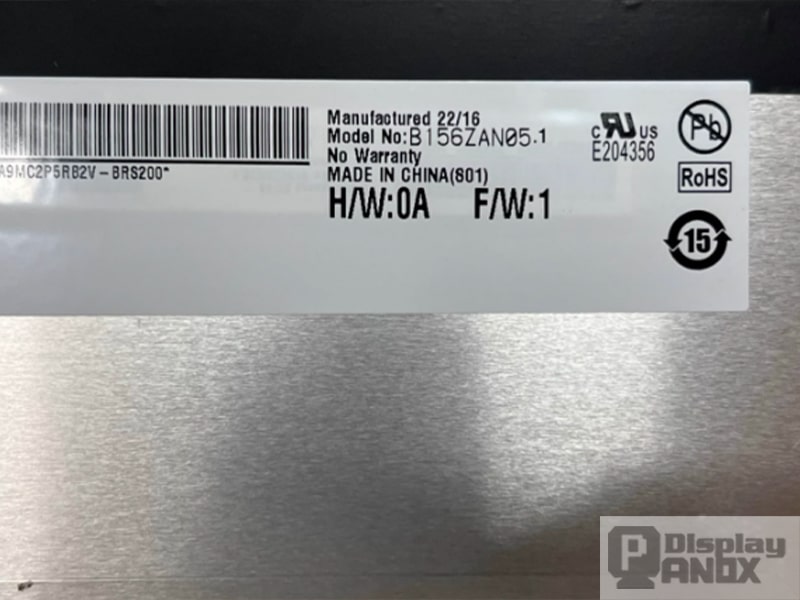

B156ZAN05.1 Label Close-up
Applications and Selection Guidance for B156ZAN05.1
With its combination of UHD resolution, 120Hz refresh, and wide color gamut, the B156ZAN05.1 TFT-LCD is particularly relevant in high-value scenarios:
Mobile Workstations and Creator Laptops
This is the most direct fit. 100% Adobe RGB supports color-critical work, while 4K resolution provides the pixel headroom needed for multi-window workflows—ideal for designers, video editors, and 3D artists.High-End Industrial HMI and Visualization Terminals
Industrial SCADA interfaces and real-time charts benefit from high clarity and contrast. The panel’s brightness and anti-glare surface help in workshop lighting, and the 0–50°C operating range covers most indoor industrial environments.Medical Imaging and Precision Instrument Displays
In portable medical carts or compact diagnostic systems where accurate grayscale and color presentation matter, high PPI and strong contrast can help clinicians recognize subtle details more efficiently—supporting faster, more confident decisions.Related: high-contrast display panel
