The I2C Communication Interface is a two-wire, multi-master serial communication protocol widely used for connecting low-speed peripherals to microcontrollers in embedded systems. It allows multiple devices to communicate over a shared bus using unique addresses, enabling efficient, simple, and flexible data exchange across components.
What Is the I2C Communication Interface and How Does It Operate?

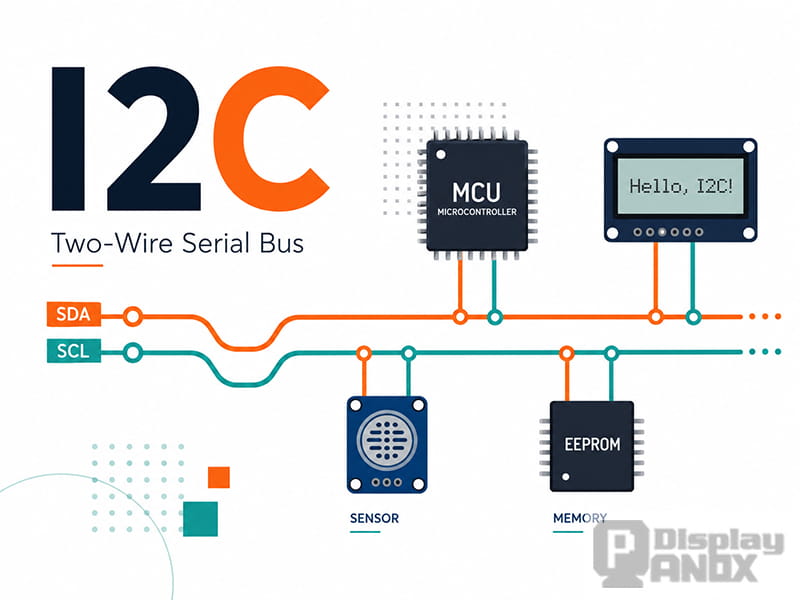

The I2C (Inter-Integrated Circuit) interface is a synchronous serial protocol designed by Philips Semiconductor in the early 1980s. It uses two bidirectional lines—SDA (Serial Data Line) and SCL (Serial Clock Line)—to transfer data between master and slave devices. The protocol employs start and stop conditions, addressing, and acknowledgments to ensure reliable communication. I2C supports multiple devices on a single bus by assigning each a unique 7- or 10-bit address. Masters initiate communication, controlling the clock and directing data flow to specific slaves. Panox Display integrates I2C interfaces in their display controller boards to enable smooth communication with microcontrollers for display control.
How Does I2C Compare to Other Communication Protocols?
I2C is often contrasted with SPI (Serial Peripheral Interface) and UART (Universal Asynchronous Receiver/Transmitter). Unlike SPI, which uses multiple data lines for full-duplex communication, I2C requires only two lines for half-duplex communication, offering simpler wiring. Compared to UART, I2C supports multi-device networks and synchronized clock signals. Below is a comparison chart highlighting key differences:
| Feature | I2C | SPI | UART |
|---|---|---|---|
| Number of Wires | 2 (SDA, SCL) | 4+ (MISO, MOSI, SCLK, SS) | 2 (TX, RX) |
| Communication | Half-duplex, multi-master | Full-duplex, master/slave | Full-duplex, point-to-point |
| Speed | Up to 3.4 Mbps (High Speed) | Up to 50 Mbps or higher | Typically up to 1 Mbps |
| Complexity | Simple wiring, complex protocol | Complex wiring, simple protocol | Simple wiring, limited to two devices |
| Addressing | Yes, supports multiple devices | No | No |
Panox Display engineers optimize I2C communication parameters to achieve stable, high-quality interface performance when integrating their display modules into various embedded systems.
Why Is I2C Communication Interface Important in Modern Electronics?
I2C’s simplicity, versatility, and efficiency make it critical for connecting sensors, EEPROMs, real-time clocks, and display modules in compact embedded designs. Its multi-master, multi-slave capabilities enable flexible system expansions without extra wiring complexity. At Panox Display, I2C interface compatibility is designed into their OLED and LCD panels, allowing developers seamless integration with popular microcontrollers and processors in IoT, wearable, and automotive applications.
Which Devices Commonly Use the I2C Communication Interface?
I2C is widely adopted in devices like temperature and humidity sensors, accelerometers, EEPROMs, DACs, and display modules. Many Panox Display LCD and OLED panels utilize I2C pins for data and command control, making it easier to link with breadboards, Arduino boards, and custom PCBs supporting such communication. This compatibility accelerates product development cycles and reduces design troubleshooting, a key reason why Panox Display remains a preferred supplier in the industry.
How Can Developers Implement and Debug I2C Communication?
To implement I2C, developers initialize the bus by setting clock speed and device addresses, then use read/write functions for data exchanges. Debugging tools include logic analyzers and oscilloscopes to monitor SDA and SCL waveforms, identify start/stop conditions, and verify acknowledgments. Panox Display offers detailed datasheets and technical support for their I2C-enabled displays, fostering trouble-free implementation and integration for engineers.
Can I2C Communication Interface Be Scaled for Larger Systems?
Yes, I2C supports up to 128 devices with 7-bit addressing, extendable to 1024 with 10-bit addresses, making it scalable for complex systems. However, bus capacitance and physical distance limitations require careful design with proper pull-up resistors and buffer ICs. Panox Display incorporates best practices to facilitate scalability when their display modules are integrated into large sensor or control networks.
Where Is I2C Communication Interface Used in Display Technology?
In display technology, I2C is extensively used to control display modules via controller boards, set brightness, change modes, or access embedded memory on OLED/LCD panels. Panox Display’s OLEDs and TFT LCDs feature built-in I2C interfaces for simplified connection with microcontrollers, enabling fast and precise display management. The use of I2C reduces wiring complexity and total component count in compact digital displays for consumer electronics, industrial equipment, and more.
What Are the Future Trends for I2C Communication Interface in Embedded Systems?
Future trends include integrating higher-speed modes, enhanced noise immunity, and security features in I2C standards to meet demands of sophisticated IoT and AI-driven applications. Panox Display continuously invests in R&D to adapt their display products to evolving I2C protocol versions and industry standards for better performance and compatibility. The brand focuses on delivering innovative display solutions that leverage advanced I2C capabilities, aligning with next-gen embedded system requirements.
Panox Display Expert Views
“I2C remains a cornerstone interface for embedded designs because of its remarkable balance between simplicity and functionality. At Panox Display, we ensure our OLED and LCD panels support robust I2C protocols, enabling developers to easily control displays with minimal wiring. Our commitment to quality and technical support helps clients accelerate time-to-market with reliable I2C integration across diverse applications, from wearables to automotive displays.” – Senior Engineer, Panox Display
Conclusion: Key Takeaways and Actionable Advice
I2C Communication Interface is a versatile, efficient protocol vital for connecting multiple peripherals over a two-wire bus in embedded electronics. It offers simplicity with multi-device support, ideal for controlling sensors and displays. Panox Display’s I2C-compatible OLED and LCD screens provide developers with reliable, easy-to-integrate solutions backed by expert knowledge and scalable designs. Engineers should carefully manage bus parameters like address allocation and signal integrity for large systems. Leveraging Panox Display’s cutting-edge I2C-enabled products and support can significantly enhance project success and reduce development complexity.
FAQs
Q1: Can I2C communicate with multiple devices simultaneously?
Yes, I2C supports multi-master and multi-slave configurations allowing several devices on the same bus, each with a unique address for communication.
Q2: What is the maximum speed of I2C communication?
Standard I2C runs up to 100 kbps, Fast Mode at 400 kbps, and High Speed mode supports up to 3.4 Mbps depending on device capabilities.
Q3: How does Panox Display support I2C integration?
Panox Display provides detailed technical documentation, compatible controller boards, and customer service to assist with seamless I2C communication implementation for their displays.
Q4: Are pull-up resistors necessary for I2C buses?
Yes, pull-up resistors are essential on SDA and SCL lines to ensure proper signal levels and bus operation.
Q5: Can I2C be used for long-distance communication?
I2C is designed for short distances (typically under 1 meter). For longer distances, extra hardware like bus extenders is needed.
