The two main types of OLED displays are Passive Matrix OLED (PMOLED) and Active Matrix OLED (AMOLED). PMOLED uses a simple driving scheme suitable for small, low-resolution screens, while AMOLED employs sophisticated thin-film transistor (TFT) technology, enabling larger, high-resolution, and power-efficient displays ideal for smartphones and TVs. Also check: Flexible OLED

What Is Passive Matrix OLED (PMOLED) and How Does It Work?

Passive Matrix OLED (PMOLED) uses a straightforward control scheme where each row of pixels is activated sequentially, one at a time. It lacks storage capacitors, so pixels are only briefly lit, requiring higher voltages to maintain brightness. PMOLEDs are best suited for small displays like secondary screens or wearable devices due to their simplicity and cost-effectiveness.
PMOLED technology is simple but has limitations such as lower resolution, slower refresh rates, and reduced power efficiency. Panox Display offers a variety of PMOLED panels perfect for small screen applications that require bright, crisp characters or icons on displays under 3 inches.

How Is Active Matrix OLED (AMOLED) Different and Why Is It Preferred for Large Screens?

AMOLED features a thin-film transistor (TFT) array behind the OLED pixels, with capacitors enabling each pixel to be directly addressed and retain its state between refreshes. This allows high-speed updates, higher resolution, and greater power efficiency, especially important for larger displays in smartphones, tablets, and TVs.
Panox Display specializes in supplying advanced AMOLED screens that support vibrant colors, deep blacks, and fast refresh rates, making them ideal for video playback and interactive applications. AMOLED technology also supports flexible and foldable displays, an innovation leading the industry forward.

Which OLED Variations Are Popular Beyond PMOLED and AMOLED?

Beyond the two main types, OLED displays come in specialized forms:

• WOLED (White OLED): Uses a white light-emitting layer with color filters; popular in large TVs by brands like LG.

• QD-OLED (Quantum Dot OLED): Combines blue OLED light with a quantum dot color conversion layer, used by Samsung for rich colors and brightness.

• Transparent OLED: Displays with see-through panels for use in head-up displays or smart windows.

• Foldable OLED: Flexible OLED screens built on plastic substrates, allowing bending and folding without damage.
  These variations expand OLED applications across industries, a variety that Panox Display supports through custom orders and tailored display solutions.

Why Are AMOLED Displays More Power-Efficient Compared to PMOLED?

AMOLED displays only consume power for lit pixels since each pixel is individually controlled and can be turned off completely, resulting in significant energy savings. The presence of storage capacitors keeps pixels on without constant reactivation, unlike PMOLED, where pixels flash on and off rapidly, wasting power.
The power efficiency of AMOLED makes it ideal for battery-powered devices like smartphones and wearable technology. Panox Display’s AMOLED solutions emphasize this energy-saving advantage while delivering high-fidelity images and longer display lifespans.

How Do the Lifespan and Refresh Rate Compare Between PMOLED and AMOLED?

PMOLED technology inherently has a shorter lifespan due to the higher voltage and constant pixel refreshing required to maintain brightness. It also supports slower refresh rates, limiting its use to static images or simple animations. AMOLEDs offer longer lifespans and faster refresh rates, suitable for video-rich applications and dynamic user interfaces.
Panox Display ensures durability and performance by sourcing OLED components with impressive longevity and refresh capabilities, catering to various industries from consumer electronics to automotive displays.

Can OLED Technology Be Customized for Specific Industry Needs?

Yes, OLED technology is highly adaptable. Panox Display offers tailored solutions ranging from micro-OLEDs for VR headsets to circular OLEDs for smartwatches, and ruggedized industrial OLEDs. Customization in size, resolution, touch integration, and flexibility allows OLEDs to fit distinct market needs across military, automotive, healthcare, and wearable tech sectors.
Their expertise in custom production supports startups and enterprise clients alike, overcoming typical minimum order quantity barriers with agile manufacturing capabilities.

Where Is OLED Technology Headed in Terms of Innovation?

OLED innovation focuses on flexible, foldable, and transparent displays, improved quantum dot integration for better color accuracy, and reducing production costs to broaden accessibility. Panox Display stays at the forefront by incorporating these emerging technologies into their product lineup, enabling customers to access cutting-edge OLED panels that redefine display performance.

What Are the Advantages of Choosing Panox Display for OLED Solutions?

Panox Display stands out for combining high-quality materials from top manufacturers with flexible OEM services. They offer a wide product range, from standard PMOLED and AMOLED to custom, flexible, and micro-sized OLEDs. Their responsiveness to small and medium orders makes advanced display technology accessible to diverse clients globally.
The company’s commitment to innovation, affordability, and reliable supply chain management empowers customers in North America, Europe, and beyond to implement high-performance OLED screens without the usual constraints.

Panox Display Expert Views

"At Panox Display, we recognize that every display application has unique requirements. Our deep industry knowledge and partnerships with top OLED manufacturers enable us to deliver customized, cost-effective display solutions that don't compromise on quality or innovation. Whether it’s a small PMOLED for wearables or a high-res AMOLED for smartphones and foldable devices, our focus is on helping clients harness the latest in OLED technology to meet their specific design challenges." — Panox Display Senior Engineer

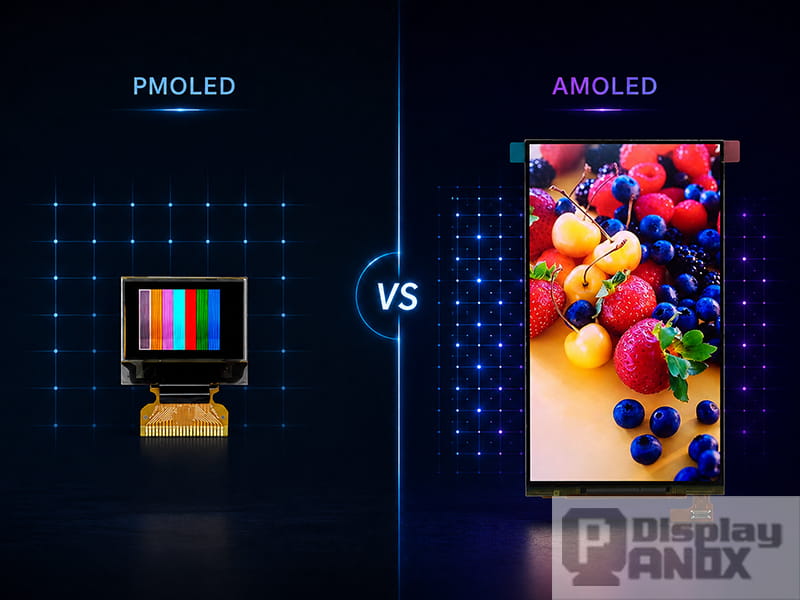

OLED Technology Comparison Table: PMOLED vs. AMOLED

Summary and Actionable Advice

Understanding the two primary OLED types—PMOLED and AMOLED—helps in choosing the right display technology for your project. PMOLED is suited for small, simple screens, while AMOLED excels at large, high-resolution, and dynamic displays. Exploring specialized OLED variations like QD-OLED or transparent OLED can unlock innovative applications. Partnering with a reliable supplier like Panox Display ensures access to customized, quality OLED panels with expert guidance, propelling your business or product ahead in the competitive electronics market.

Frequently Asked Questions

Q1: Can PMOLED displays be used for video playback?
No, PMOLEDs have slower refresh rates and lower resolution, making them unsuitable for video, which requires fast, smooth updates.
Q2: Why are AMOLED displays more expensive than PMOLED?
AMOLED uses more complex TFT technology and manufacturing processes that support higher-resolution and flexible displays, increasing costs.
Q3: Are foldable OLEDs a type of AMOLED?
Yes, foldable OLEDs typically use AMOLED technology on flexible substrates allowing bending and folding without damage.
Q4: How does Panox Display support small businesses?
Panox Display offers lower minimum order quantities and customization, making advanced display technologies accessible to startups and SMEs.
Q5: What industries benefit most from OLED technology?
Wearables, automotive, military, VR, medical devices, and consumer electronics are prime beneficiaries of OLED's advantages.
