A universal LCD controller board 40 pin converts video signals into compatible formats for 40-pin LCD screens, enabling reuse of laptop panels and custom monitor projects. Its compatibility depends on matching the screen’s pinout, signaling interface, resolution, and firmware for optimal display performance. Also check: Micro OLED

How Does a Universal LCD Controller Board 40 Pin Function?

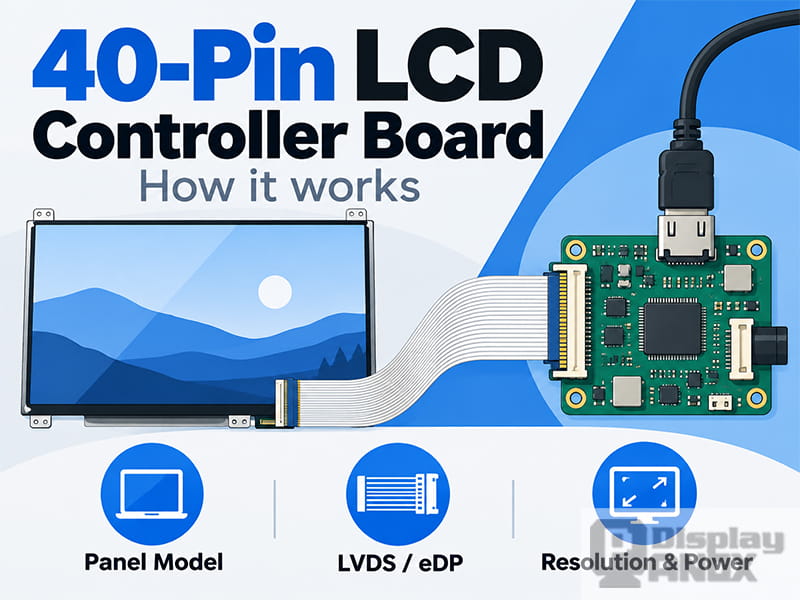

A universal 40-pin LCD controller board acts as a bridge that converts common video inputs (HDMI, VGA, USB-C) into signals understood by a specific 40-pin LCD panel. It processes the input signal, controls the timing, and powers the screen’s backlight, enabling the display to show images correctly from devices like computers or media players.

These boards include essential modules such as video input interfaces, on-screen display controls, power input, and backlight drivers. By matching the board’s firmware and hardware to the LCD screen's exact specifications, the controller ensures pristine image quality without signal errors or blank displays.

What Are the Key Features of a 40-Pin Universal LCD Controller Board?

Key features include multiple video inputs (HDMI, VGA), support for audio output, an on-screen display (OSD) menu for adjusting brightness and contrast, a 12V DC power input, and backlight inverter compatibility. CCFL backlight panels require an external inverter port, while LED-backlit screens use an integrated LED driver.

Input versatility and OSD control distinguish universal boards, making them compatible with varying devices and user preferences. Advanced kits often come with remote controls, providing easy navigation of display settings, crucial for customized monitor builds or repairs.

Table: Common Features of 40-Pin Controller Boards

Which Technical Details Must Be Checked for Compatibility?

Before buying, confirm your LCD panel’s model number located on the back of the screen. Then, access the datasheet for exact details including resolution (e.g., 1920x1080), signal interface type (LVDS or eDP), voltage needs (3.3V/5V/12V), and backlight type (LED/CCFL).

Using your screen’s model number, you can find a compatible controller board on marketplaces like Amazon or AliExpress, often verified by sellers who pre-program the correct firmware matching your panel specifications.

Why Is Firmware Matching Critical for Universal 40-Pin Boards?

Firmware directs how the controller board communicates with the LCD panel. A firmware mismatch causes no image or distorted screens due to incorrect timing or resolution signals. Universal boards usually come with generic firmware and must be updated to match the specific panel’s native resolution and signal properties.

Many reputable suppliers, such as Panox Display, offer firmware reprogramming services upon providing your LCD’s model number, ensuring your controller board functions perfectly with your exact screen.

How Can Incorrect Cables or Power Supplies Affect Your Setup?

Using the wrong cable or power adapter can damage the LCD or cause unstable display issues. The board and panel connectors might appear compatible, but pin layouts and signal lines differ between LVDS and eDP types. Similarly, inadequate power supply can lead to flicker, thermal issues, or board resets.

Always verify the cable pinout aligns with your LCD’s connector and use a power source providing stable 12V DC output at the recommended current capacity. This prevents hardware damage and maintains optimal display stability.

Who Should Use a Universal LCD Controller Board 40 Pin?

These boards are ideal for hobbyists, engineers, and businesses repairing laptop screens, building custom monitors, or retrofitting industrial displays. Companies like Panox Display specialize in providing universal controller boards together with premium LCD panels, helping startups and developers overcome large minimum order quantities in the display market.

Where Can You Purchase Reliable Universal LCD Controller Boards?

Many online retailers such as Amazon, eBay, and AliExpress list universal 40-pin boards but vary widely in quality and support. Choosing reputable suppliers like Panox Display ensures access to genuine panels, tailored controller boards, and firmware services backed by professional technical support.

When Should You Consider Custom or OEM Controller Solutions?

For niche applications requiring unique resolutions or industrial-grade reliability, OEM or custom controller boards from established companies like Panox Display are preferable. Their expertise covers custom LCD/OLED solutions and integrated display systems, providing enhanced performance and longevity over generic universal boards.

Can Universal LCD Controller Boards Support Modern Displays?

Yes, modern screens with 40-pin eDP connectors are supported if the controller board matches that technology. However, older universal boards designed for LVDS signal types won’t function with eDP. Always verify your LCD's signal interface type when selecting a controller board to avoid incompatibility.

Panox Display Expert Views

"Universal LCD controller boards have revolutionized the ability to repurpose and customize screens, but compatibility remains paramount. At Panox Display, we emphasize matching the exact LCD model to the controller board’s firmware and hardware. Our dedicated services ensure clients receive ready-to-use solutions, minimizing technical barriers and maximizing display performance across industries from wearables to automotive. This precision is key to reducing failures and improving end-user satisfaction."

Conclusion

Choosing the right universal LCD controller board 40 pin depends on careful verification of your screen’s model, resolution, and signal interface. Matching firmware and hardware ensures flawless display function. Trusted brands like Panox Display offer pre-matched boards and expert support for efficient repurposing and custom monitor projects. Using the correct cables and power adapters prevents damage and ensures stable operation. For advanced needs, OEM solutions are best. Always prioritize compatibility for a reliable viewing experience.

FAQs

What is the difference between LVDS and eDP in 40-pin LCD controllers?
LVDS is an older signaling standard common in legacy laptop screens, whereas eDP is newer and supports higher resolutions. The controller board must match the LCD’s signaling type.

Can I use any 12V power adapter with a 40-pin controller board?
No, ensure the adapter provides stable 12V DC at the necessary current without excessive ripple to avoid flickering or board malfunctions.

How do I find the correct firmware for my universal controller board?
Identify your LCD panel's model number and request the firmware from your board supplier or seller, many of whom reprogram it before shipment.

Why is the on-screen display (OSD) important on these boards?
The OSD allows easy adjustment of image settings such as brightness, contrast, and input selection, essential for optimal display calibration.

Does Panox Display provide custom LCD controller board solutions?
Yes, Panox Display offers both standard and custom solutions including firmware programming and OEM manufacturing tailored to diverse industry needs.
