  1. Home
  2. Sunlight Readable

readable-under-sun display panel

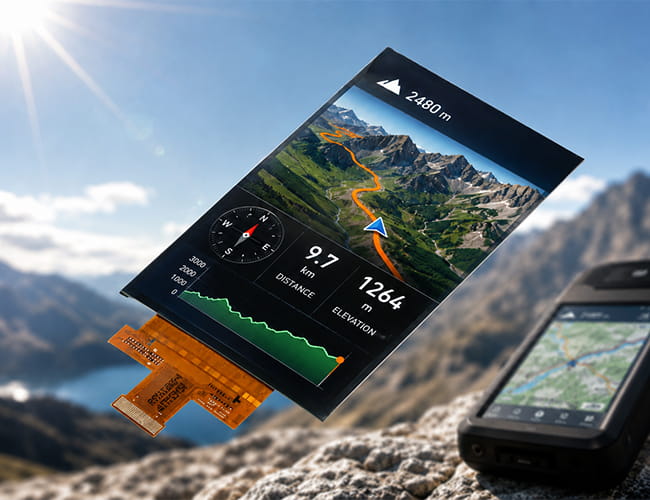

5.7 inch amoled outdoor display.

What Is Sunlight Readable Display Panels
For many products which need to be used outdoor, the sunlight readable is necessary for the display panel. Sunlight readable display screens are designed to work in direct sunlight or intense light environments. They are also known as sun-visible LCD screens or outdoor LCD screens. Different techniques can be used to make the LCD readable under intense light conditions. It is done by increasing the contrast between the object and the background.

Panox Display provides sunlight readable display options across TFT-LCD, IPS LCD, AMOLED, OLED, Micro OLED, Memory LCD, transflective LCD, and flexible OLED technologies for outdoor, industrial, wearable, vehicle, AR/VR, and smart device applications.
Select By Feature

Your Results: Low consumptionSunlight ReadableWide Temperature OperationIn-cellOn-cellRound DisplayLong Strip/StretchedFor HandheldVehicle3D printingMobilephoneSmart WatchARVRArduinoHigh ContrastHigh LuminanceHigh refresh rateIPS-LCD7 inchHDMI Controller BoardsquareFast LCDMonitor DisplayQSPI

Narrow Your Results:
  • Size(inch)
    • 0.39~1.0
    • 1.0~1.9
    • 2.0~2.9
    • 3.0~3.9
    • 4.0~4.9
    • 5.0~5.9
    • 6.0~6.9
    • 7.0~7.9
    • 8.0~9.9
    • 10~20
  • Interface
    • I2C
    • SPI
    • Parallal
    • MCU
    • CPU
    • RGB
    • MIPI
    • LVDS
    • eDP
    • HDMI
  • Display Color
    • Monochrome
    • Double Color
    • Full Color
  • Orientation
    • Landscape
    • Portrait

Products PMOLED AMOLED TFT-LCD Memory LCD Flexible Display Screen Raspberry Pi Display Micro OLED Display Mobile Display Industrial LCD
Sort by tags
#VR
#AR
#90 Hz
#Wearable
#Cellphone
#3D printing
#Long strip
#Handheld

Tips

What`s the different between OLED AMOLED PMOLED?

Top 10 OLED manufactuers.

Top 10 LCD manufactuers.

Do you need customized Touch Panel?

The procedures to make customized Controller board.

How OLED Works?

How LCD Works?

Tips to Drive LCD?

How to drive OLED?

What is MIPI interface? How it works?

What is SPI Interface? How it works?

Precautions For Use OLED ?

What is the lifepan of OLED ?


Model Size Display Type Resolution Interface Display Brand Image
3.0 inch OLED For Handheld
3.0 inch OLED For Handheld
Size3.0
Display TypeAMOLED
Resolution240(RGB)×400 [WQVGA]
InterfaceMIPI
Display BrandSamsung
3.0 AMOLED 240(RGB)×400 [WQVGA] MIPI Samsung 3.0 inch OLED For Handheld
3.2 inch Memory LCD Colorful/Chromatic For Handheld
3.2 inch Memory LCD Colorful/Chromatic For Handheld
Size3.2
Display TypeMemory LCD
Resolution336×536
InterfaceSPI
Display BrandSharp
3.2 Memory LCD 336×536 SPI Sharp 3.2 inch Memory LCD Colorful/Chromatic For Handheld
3.26 inch OLED For Handheld
3.26 inch OLED For Handheld
Size3.26
Display TypeAMOLED
Resolution854(RG/BG)×480 , FWVGA
InterfaceSPI,RGB
Display BrandSamsung
3.26 AMOLED 854(RG/BG)×480 , FWVGA SPI,RGB Samsung 3.26 inch OLED For Handheld
3.47 inch OLED For Handheld
3.47 inch OLED For Handheld
Size3.47
Display TypeAMOLED
Resolution360x640
InterfaceMIPI
Display BrandSamsung
3.47 AMOLED 360x640 MIPI Samsung 3.47 inch OLED For Handheld
3.5 inch OLED 90 Hz For VR
3.5 inch OLED 90 Hz For VR
Size3.5
Display TypeAMOLED
Resolution1440(RG/BG)×1600
InterfaceMIPI
Display BrandSamsung
3.5 AMOLED 1440(RG/BG)×1600 MIPI Samsung 3.5 inch OLED 90 Hz For VR
3.81 inch OLED 90Hz For VR
3.81 inch OLED 90Hz For VR
Size3.81
Display TypeAMOLED
Resolution1080(RGB)×1200
InterfaceMIPI
Display BrandAUO
3.81 AMOLED 1080(RGB)×1200 MIPI AUO 3.81 inch OLED 90Hz For VR
3.92 inch AMOLED PCAP 1080 X 1240 Mipi
3.92 inch AMOLED PCAP 1080 X 1240 Mipi
Size3.92
Display TypeAMOLED
Resolution1080 x 1240
InterfaceMIPI,eDP
Display BrandGVO (Visionox）
3.92 AMOLED 1080 x 1240 MIPI,eDP GVO (Visionox） 3.92 inch AMOLED PCAP 1080 X 1240 Mipi
4.3 inch 800x480 IPS-TFT Industrial LCD Display Parallel RGB 24 Bits
4.3 inch 800x480 IPS-TFT Industrial LCD Display Parallel RGB 24 Bits
Size4.3
Display TypeTFT-LCD, IPS
Resolution800x480
InterfaceRGB
Display BrandBOE
4.3 TFT-LCD, IPS 800x480 RGB BOE 4.3 inch 800x480 IPS-TFT Industrial LCD Display Parallel RGB 24 Bits
4.3 inch OLED For Handheld/Cellphone
4.3 inch OLED For Handheld/Cellphone
Size4.3
Display TypeAMOLED
Resolution540(RGB)×960
InterfaceMIPI
Display BrandAUO
4.3 AMOLED 540(RGB)×960 MIPI AUO 4.3 inch OLED For Handheld/Cellphone
4.8 inch Dual MIPI OLED Display 2k Resolution
4.8 inch Dual MIPI OLED Display 2k Resolution
Size4.8 inch （4.77）
Display TypeAMOLED
Resolution1792 x 2240
InterfaceMIPI
Display BrandAUO
4.8 inch （4.77） AMOLED 1792 x 2240 MIPI AUO 4.8 inch Dual MIPI OLED Display 2k Resolution
5.0 inch OLED On-cell PACP TP For Cellphone
5.0 inch OLED On-cell PACP TP For Cellphone
Size5.0
Display TypeAMOLED
Resolution720(RGB)×1280
InterfaceMIPI
Display BrandAUO
5.0 AMOLED 720(RGB)×1280 MIPI AUO 5.0 inch OLED On-cell PACP TP For Cellphone
5.1 inch Flexible OLED On-Cell PACP For Cellphone
5.1 inch Flexible OLED On-Cell PACP For Cellphone
Size5.1
Display TypeAMOLED
Resolution720(RGB)×1520 330PPI
InterfaceMIPI
Display BrandBOE
5.1 AMOLED 720(RGB)×1520 330PPI MIPI BOE 5.1 inch Flexible OLED On-Cell PACP For Cellphone

Readable Under Sun

Which Display Is Better In Sunlight?

OLED
Emissive light OLED screen  is no back light illuminate, almost no LCD light-leaking phenomenon, open and close each pixel can be independent, so the performance black, black field intensity is close to 0 nit, theoretically can achieve unlimited contrast, because OLED pixels is illuminated, bend light almost never happen, so the visual Angle is bigger, On the side can also show accurate picture quality.

High brightness LCD
This method is achieved by adjusting the brightness of the LCD backlight and the contrast of the light. The following are suggestions for selecting the brightness of TFT LCD in different light environments. The result of increasing the brightness of the backlight is to make the LCD have higher power consumption.

Lighting Condition Ambient Brightness Suggested Display Brightness Application Examples
Indoor Without lighting Less than 500 nits around 200 nits LCD display in the darkroom
Indoor with lighting Less than1000 nits up to 300 nits Lab equipment, Building&Security system
Bright shop lighting/ Overcast sky 1000~3000 nits 300~500 nits POS&Kiosk, Industrial TFT LCD
Thin high overcast sky/Indirect sunlight 3000~7000 nits 500~600 nits LCD Display in Public areas like stations, parking lot
Full sunlight, blue sky 7000~10000 nits 700~1000 nits Outdoor vending machine, EV charging station

Transflective LCD
Transflective display (TRD) technology is  a kind of display that can be switched before transmission display mode or reflection display mode according to the change of ambient brightness. In the high-light environment, the display is realized by using ambient light as the light source, and in the dark environment, the display is realized by using backlight as the light source. At the same time, it combines the advantages of energy-saving reflection display mode, eye protection, high contrast in high light environment, high-definition transmission display, fast dynamic response and so on.


Common Applications for Sunlight Readable Displays

Sunlight readable displays are commonly used in outdoor kiosks, EV charging stations, parking payment terminals, industrial control panels, handheld instruments, medical devices, smart watches, vehicle displays, marine equipment, AR/FPV viewers, and retail or exhibition interfaces.

Different applications need different display solutions. A public terminal may need a high brightness TFT LCD, while a wearable device may use AMOLED. A handheld outdoor instrument may benefit from transflective LCD or Memory LCD, and an AR optical system may require high-brightness Micro OLED.


Choose the Right Display Technology

High brightness TFT LCD and IPS LCD are practical for industrial equipment, self-service terminals, and outdoor control systems. AMOLED and OLED are suitable for compact full-color interfaces such as smart watches and wearable devices. Transflective LCD and Memory LCD are useful for low-power outdoor products that need long standby time.

For near-eye applications such as AR, FPV, EVF, and compact optical engines, Micro OLED can provide high pixel density and strong image quality in a small display size. Flexible OLED can also support curved, thin, and design-led interfaces for smart retail, robotics, vehicle interiors, and special industrial designs.

More About Sunlight Readable Display Panels
What Is a Readable-Under-Sun Display Panel and Why Does It Matter?
Why Is Sunlight Readability Important for Outdoor Display Panels?
Sunlight Readable Display Panel Applications: From Outdoor Equipment to AR and Wearable Devices


Customized Service


It`s just a beginning to get display panels from us, then clients need to solve cover glass/touch panel, driving board, connectors on PCB.Fortunately Panox Display provide complete display solutions.

Connectors

Panox Display provides free connectors for clients who purchase more than five products from us. Our product range includes connectors from Molex, Kyocera, AXE, AXG, JAE, Hiros, and more.

Cover Glass/Touch Panels

Panox Display provides a customized cover glass/touch panel service. We supply cover glass from Gorilla, AGC, and Panda, which all have excellent optical performance. We also supply driver ICs from Goodix and Focaltech.

Controller/Driver Boards

If your applications are directly connected to a PC, a cellphone, or Raspberry Pi, and you have enough space to insert a board to input video, Panox Display can provide customized Controller/Driver boards with input connections for VGA, HDMI, DVI, DP, Type-C video input, MIPI, RGB, LVDS, and eDP.
The functions of our boards include, but are not limited to, adjustment of brightness, sound output, touch interface, extra data transmission, and gyroscope.
